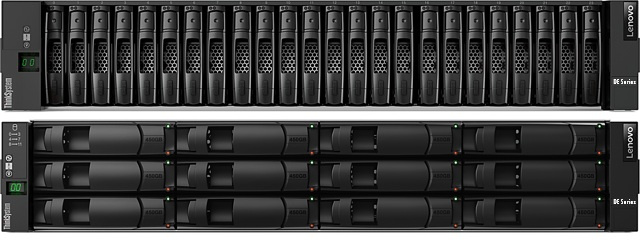

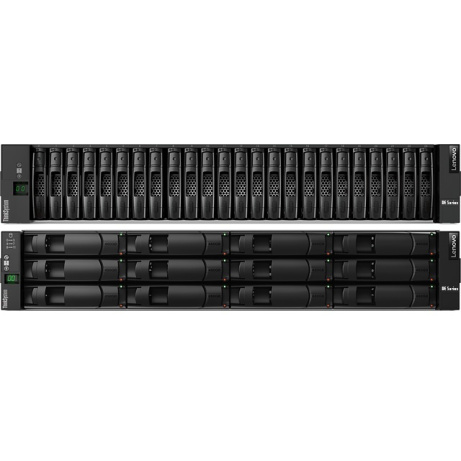

DE controller DE2000H 8G HICless 2U24 SFF

Form factor: 2U rack mount
RAID levels: RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. (RAID 3 can be configured only through the CLI.)
Controller system memory: Up to 64 GB per system (32 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery for destaging to flash)
Expansion enclosure support: 3x DE120S or 3x DE240S
Drives bays:  Up to 96 SFF hot-swap drive bays (Up to 4x 2U24 SFF enclosures)


Drives:


*10K rpm SAS HDDs
*10K rpm SAS FIPS HDDs
*SAS SSDs (1 DWD)
*SAS SSDs (3 DWD)
*SAS FIPS SSDs (3 DWD)

Storage capacity: Up to 1.47 PB

Host connectivity:


*Host connectivity ports provided using host interface cards (HICs) (per controller enclosure with two controllers):
*4x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (2 ports per controller)
*8x 12 Gb SAS host ports (Mini-SAS HD, SFF-8644) (4 ports per controller)
*8x 10/25 Gb iSCSI SFP28 host ports (DAC or SW fiber optics [LC]) (4 ports per controller)
*8x 8/16/32 Gb FC SFP+ host ports (SW fiber optics [LC]) (4 ports per controller)
*4x 1/10 Gb iSCSI RJ-45 host ports (2 ports per controller

Power supply: Two redundant hot-swap 913 W (100 - 240 V) Platinum AC power supplies.
Standard software features: Dynamic Disk Pools, SSD read cache, snapshots (up to 128 targets), volume copy, thin provisioning (DDP only), encryption (requires optional FIPS drives), and data assurance.
Dimensions (HxWxD mm): 85x449x553
Weight: 24.59kg

Záruka: 3 years
Odkaz na stránku výrobce: https://lenovopress.lenovo.com/lp0881-lenovo-thinksystem-de2000h-hybrid-storage-array
