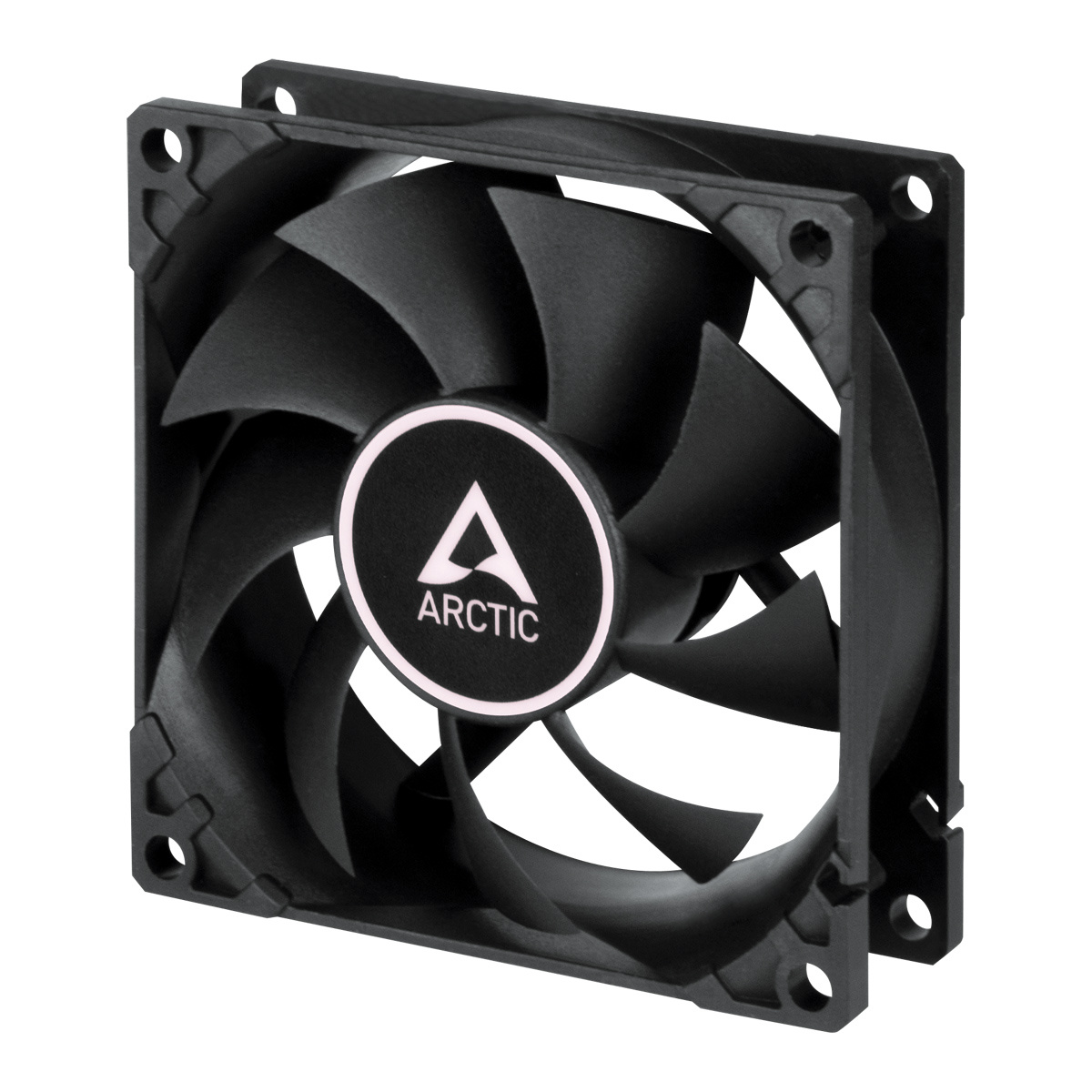

ARCTIC F8 Standard 80 mm ¨Case Fan

LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimizing the noise level yet delivering the desired airflow and pressure.

TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case

QUALITY YOU CAN RELY ON
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the F8.

TECHNICAL SPECIFICATIONS & MANUAL

General data

Performance
Fan Speed: 2000 rpm
Airflow: 31 CFM/ 52.7 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone

Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0 - 40 °C

Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.6 V
Current/ Voltage: 0.11 A / 12 V
Cable Length: 400 mm

Size & Weight
Length: 80 mm
Width: 80 mm
Height: 25 mm
Weight: 71 g
