Unique Feature

Superb Productivity
- PCIe Gen5 (Graphics)
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1 Power Phase
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
- ASRock Auto Driver Installer

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

- Intel® H610

Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Expansion Slots
- 14th and 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
- 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
- Max. capacity of system memory: 128GB*
- Supports Intel® Extreme Memory Profile (XMP) 3.0
* Actual support may vary by CPU
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Expansion Slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
* Supports NVMe SSD as boot disks

Storage

Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Internal I/O Connectorss
* Supports NVMe SSD as boot disks

USB

Chipset:
- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

Internal I/O Connectors

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)*
- 1 x Chassis/Water Pump Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Internal I/O Connectors
- 1 x 8 pin 12V Power Internal I/O Connectors
- 1 x Front Panel Audio Internal I/O Connectors
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

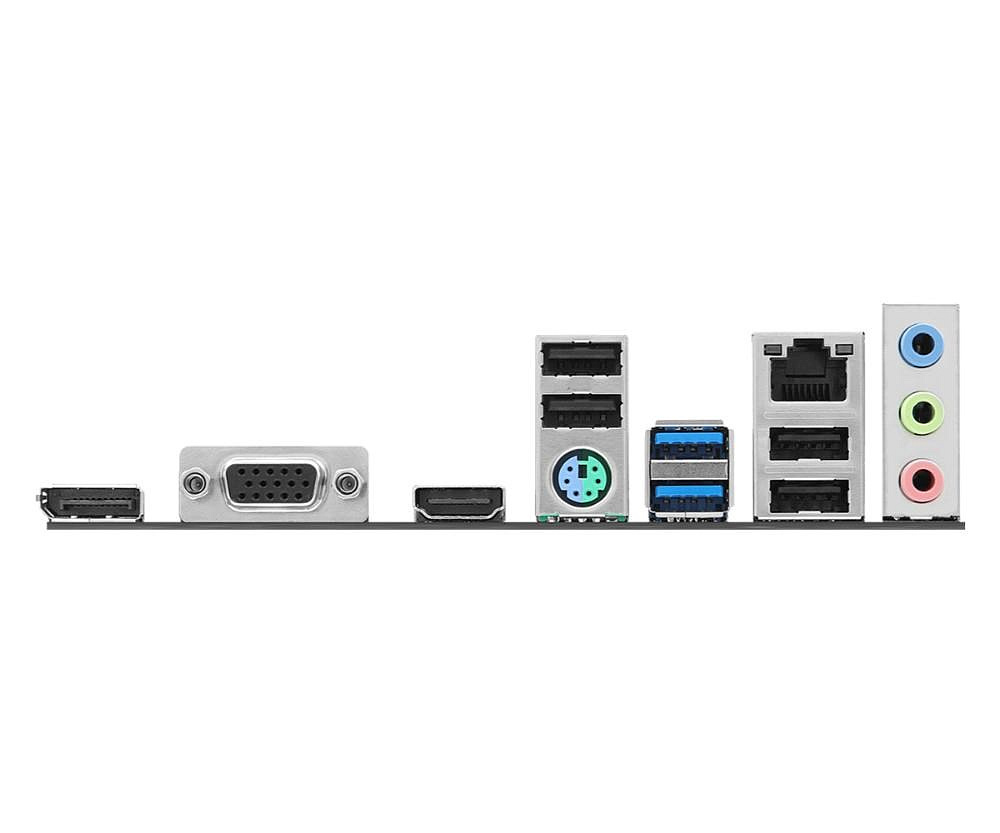

Back Panel I/O Ports

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm
- Solid Capacitor design

OS

- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
