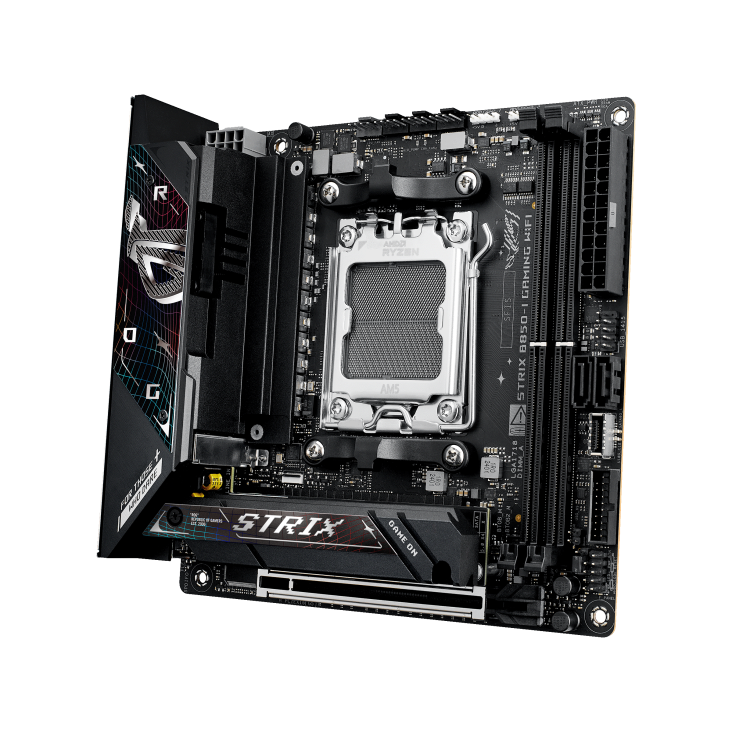

ROG STRIX B850-I Gaming WIFI

* ATX Form Factor

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850

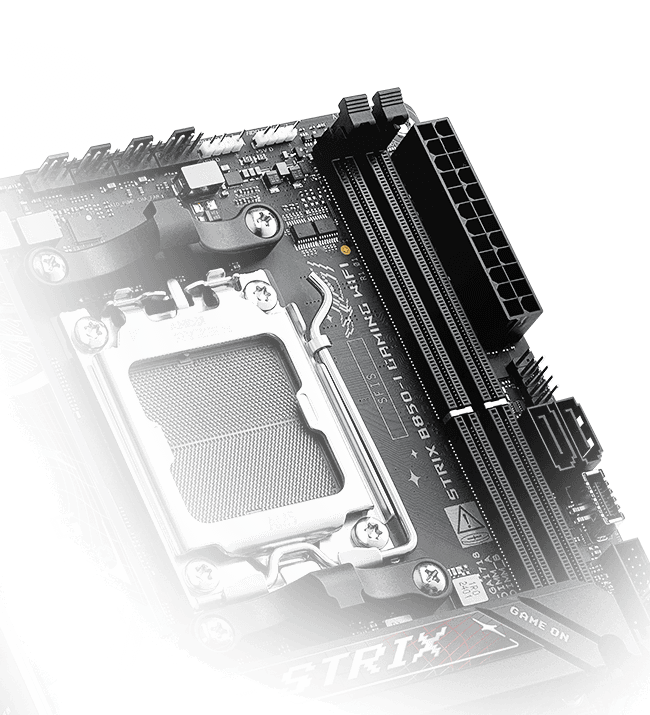

Paměť:
*2 x DIMM slot, max 96GB, DDR5
*Dvoukanálová paměťová architektura
*Podpora rozšířených profilů AMD pro přetaktování (EXPO™)
*Podpora modulů DIMM Flex
*Rozšířený profil paměti ASUS (AEMP)
*ECC a Non-ECC Un-buffered DIMM

Grafické porty:
*1 x HDMI™ port
*1 x USB 10Gbps ports support USB Type-C® display outputs

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
*1 x PCIe 5.0 x16 slot(s)
AMD Ryzen™ 8000 Series Desktop Processors*
*1 x PCIe 4.0 x16 slot(s)

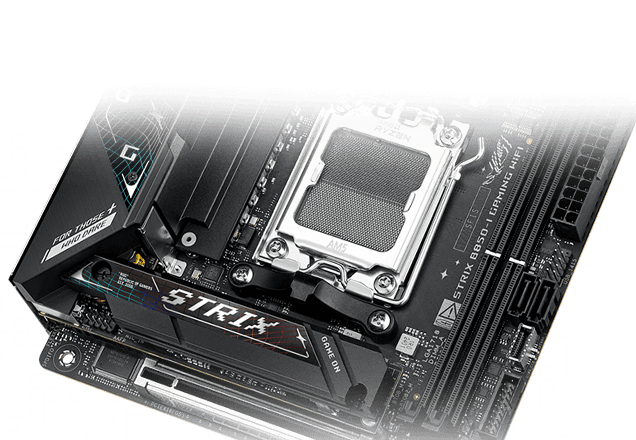

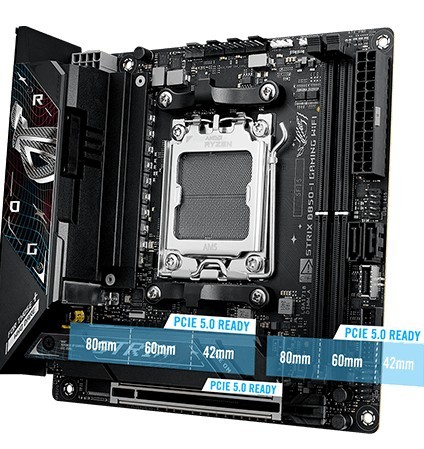

Úložný prostor:
Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Ethernet:
*1 x Intel® 2.5Gb Ethernet
*ASUS LANGuard

Připojení a Bluetooth:
*Wi-Fi 7
*2x2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band**
*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
*Bluetooth® v5.4***

USB:
Zadní USB (Total 8 ports)
*1 x USB 20Gbps port(s) (1 x USB Type-C®)
*5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
*2 x USB 2.0 port(s) (2 x Type-A)
Přední USB (Total 5 ports)
*1 x USB 10Gbps
*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
*1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A

Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
*SupremeFX Shielding Technology
*Savitech SV3H712 AMP
*Rear optical S/PDIF out port
*Premium audio capacitors
*Unique de-pop circuit
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

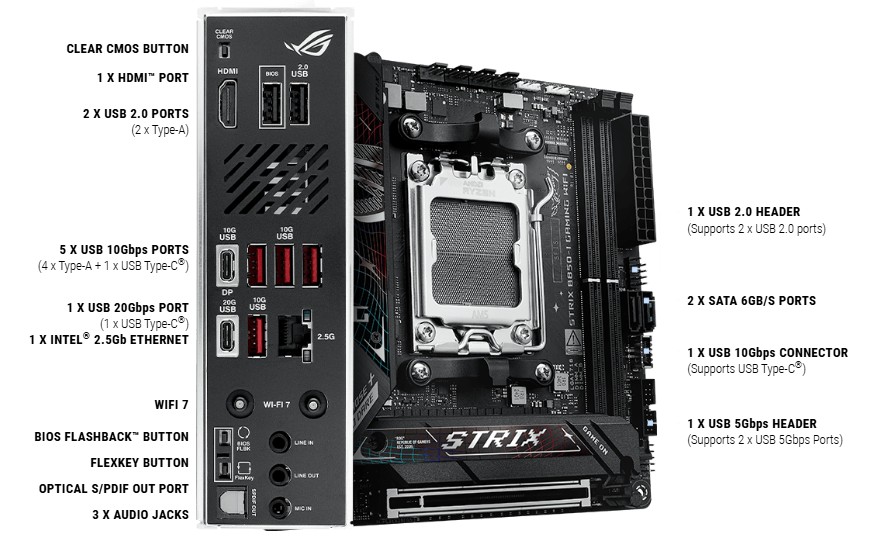

Vstupy/výstupy zadního panelu:
*1 x USB 20Gbps port(s)
*5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
*2 x USB 2.0 port(s) (2 x Type-A)
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Intel® 2.5Gb Ethernet port
*3 x Audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack™ button
*1 x Clear CMOS button
*1 x FlexKey button

Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header(s)
*1 x 4-pin AIO Pump header(s)
*1 x 4-pin Chassis Fan header(s)
*1 x Extra Flow Fan header(s)
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložiště:
*2 x M.2 slots (Key M)
*2 x SATA 6Gb/s ports
USB:
*1 x USB 10Gbps connector (support(s) USB Type-C® )
*1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
*1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Různé:
*2 x Addressable Gen 2 header(s)
*1 x CPU Over voltage jumper
*1 x Front Panel Audio header (F_AUDIO)
*1 x 10-1 pin Front System Panel header
*1 x Thermal Sensor header

Příslušenství:
Kabely:
*1 x Panel cable
*1 x ROG USB2.0 splitter cable
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*1 x Cable ties package
*1 x M.2 backplate Q-Latch package(s)
*1 x M.2 Q-Slide package
*1 x ROG key chain
*1 x M.2 backplate rubber package(s)
*1 x Screw package(s) for M.2 SSD
Dokumenty:
*1 x Quick start guide

---

---

---

---

---

---
