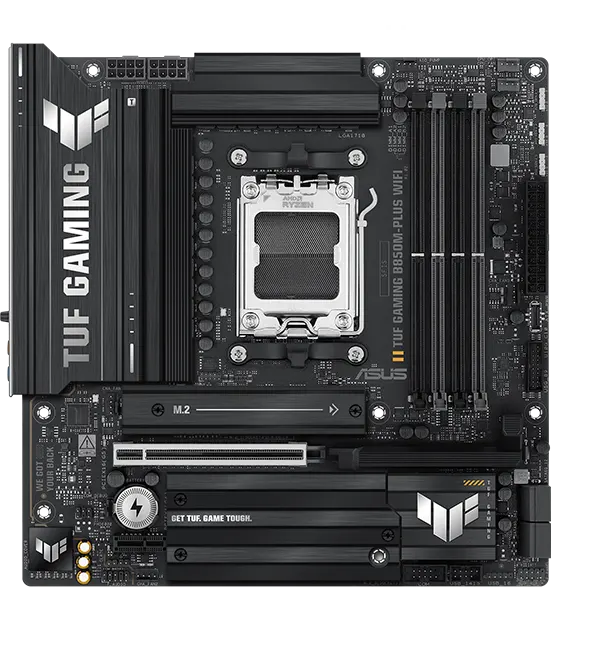

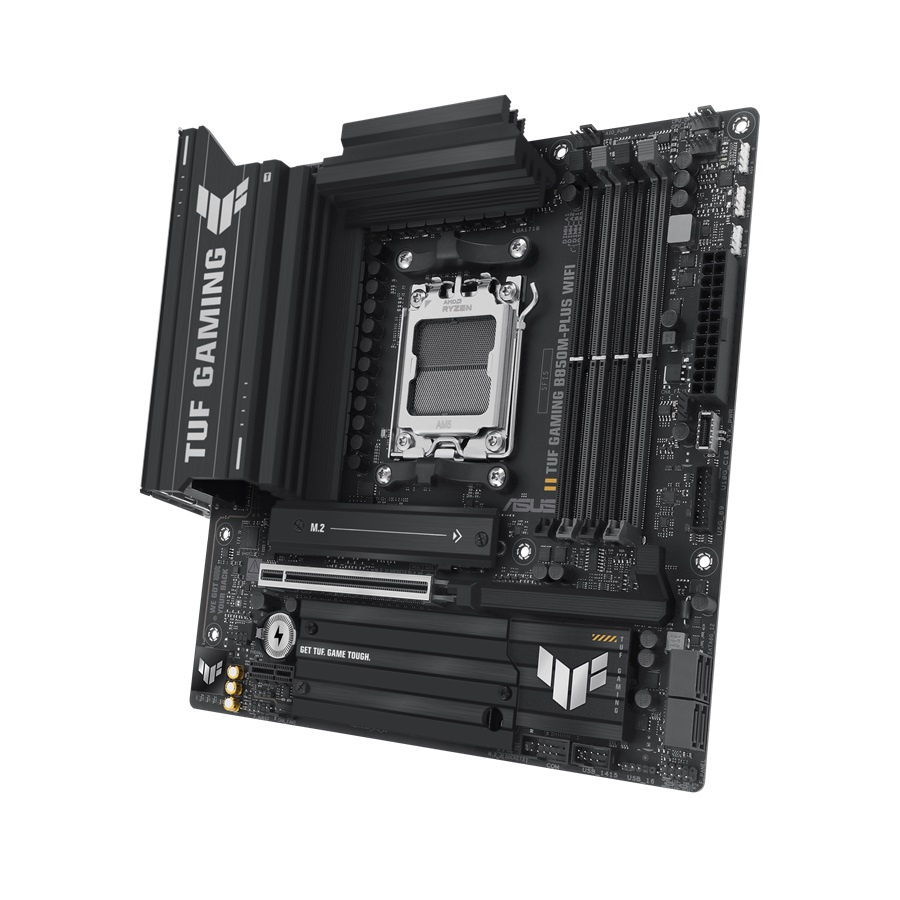

ASUS TUF B850M-PLUS WIFI

* mATX Form Factor

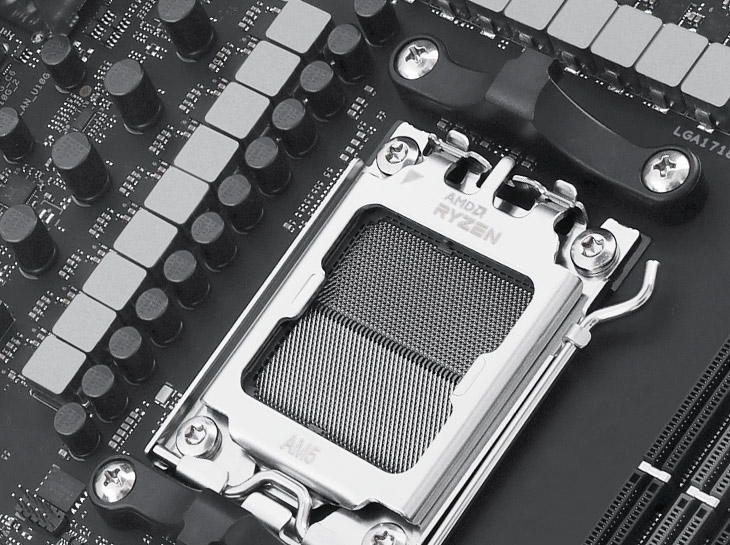

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD B850 Chipset

Paměť:
*4 x DIMM slots, max. 192GB, DDR5 - Podpora až 8000+MT/s (OC) s procesory Ryzen™ řady 9000 a 8000 a 7000, ECC a *Non-ECC Un-buffered DIMM
*Dvoukanálová paměťová architektura
*Podpora rozšířených profilů AMD pro přetaktování (EXPO™)
*ASUS Enhanced Memory Profile (AEMP)

Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port

Rozšiřující sloty:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
*1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
*1 x PCIe 4.0 x1 slot

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
*M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
*4 x SATA 6Gb/s ports

Ethernet:
*1 x Realtek 2.5Gb Ethernet
*TUF LANGuard

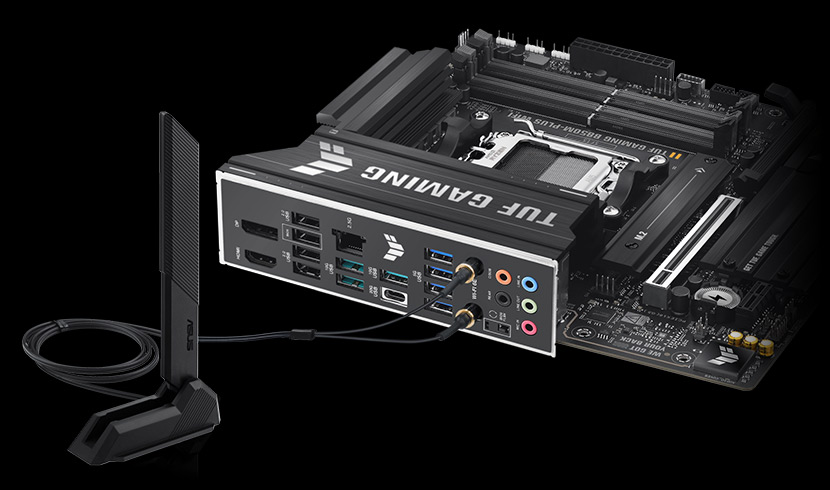

Připojení a Bluetooth:
*Wi-Fi 6E
*2x2 Wi-Fi 6E (802.11ax)
*Supports 2.4/5/6GHz frequency band*
*Bluetooth® v5.3**

USB:
Zadní USB (Total 12 ports)
*1 x USB 20Gbps port (1 x USB Type-C®)
*3 x USB 10Gbps ports (3 x Type-A)
*4 x USB 5Gbps ports (4 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
Přední USB (Total 6 ports)
*1 x USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio:
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

*Audio Shielding
*Premium audio capacitors
*Dedicated audio PCB layers
*Audio cover
*Unique de-pop circuit

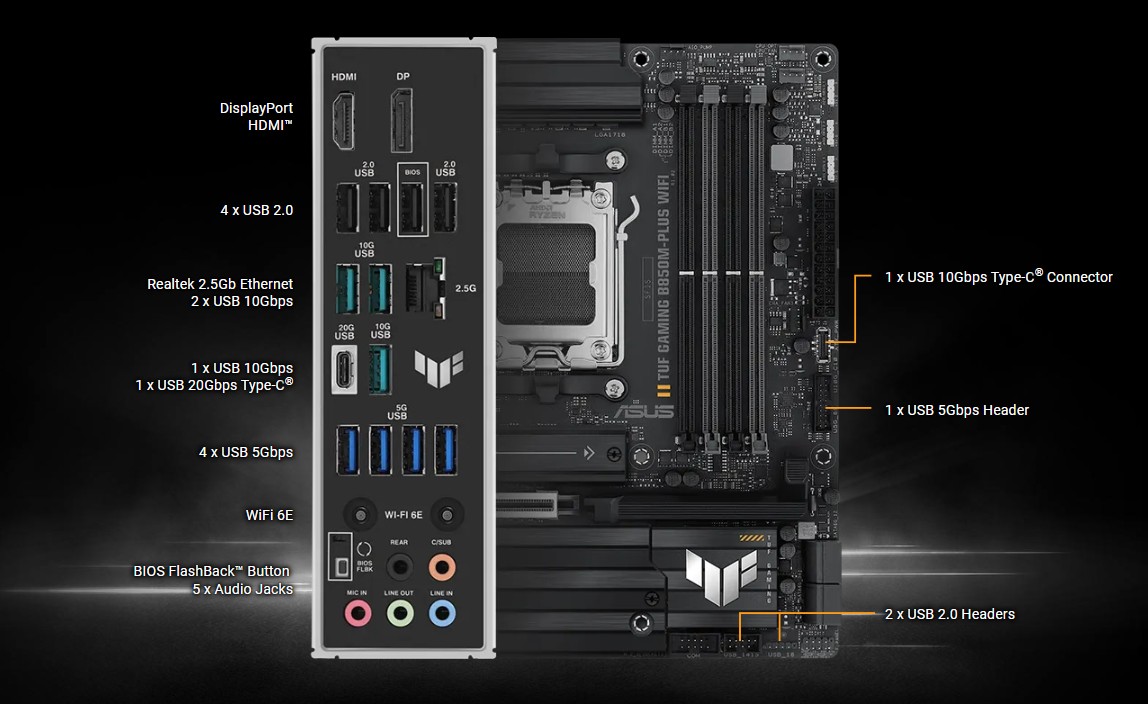

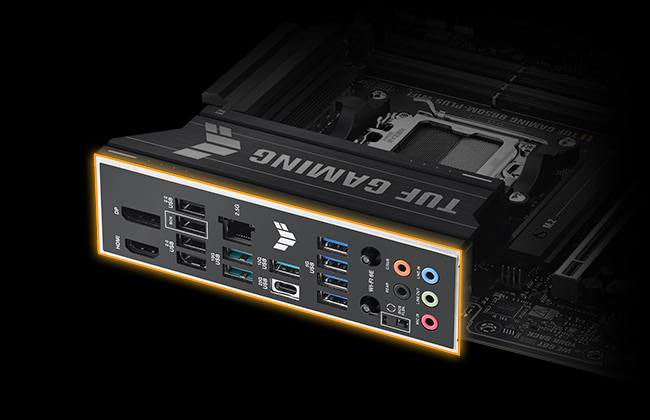

Vstupy/výstupy zadního panelu:

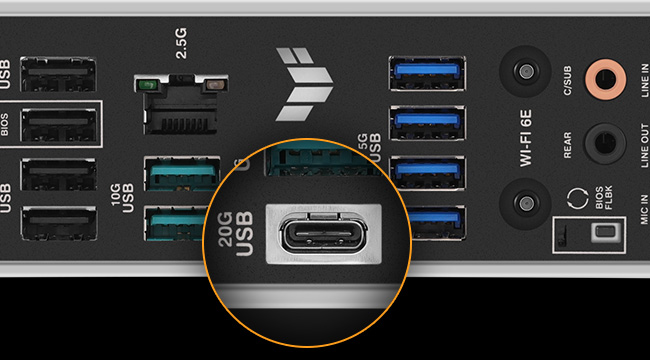

*1 x USB 20Gbps port (1 x USB Type-C®)
*3 x USB 10Gbps ports (3 x Type-A)
*4 x USB 5Gbps ports (4 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks

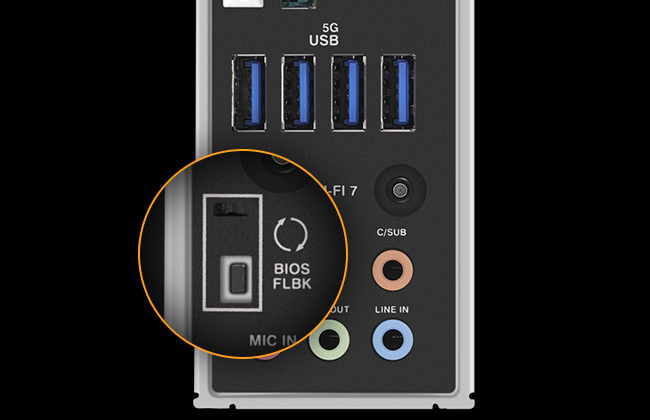

*1 x BIOS FlashBack™ button


Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers

Napájení:
*1 x 24-pin Main Power connector
*2 x 8-pin +12V CPU Power connectors

Úložiště:
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports

USB:

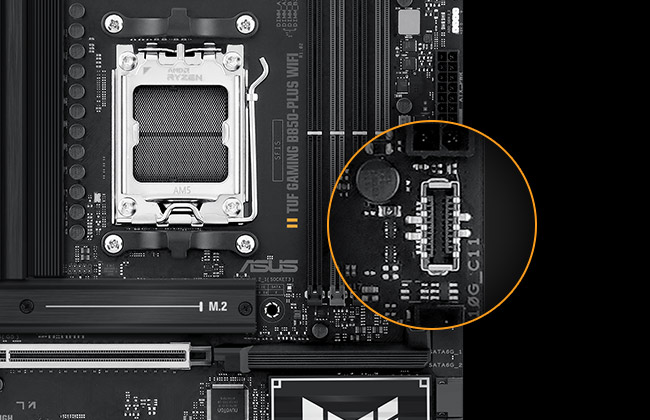

*1 x USB 10Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*2 x USB 2.0 headers support 3 additional USB 2.0 ports

Různé:
*3 x Addressable Gen 2 headers
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x 10-1 pin Front System Panel header


Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*1 x TUF GAMING sticker
*2 x M.2 rubber packages
*1 x Screw package for M.2 SSD
Dokumenty:
*1 x Quick start guide

---

---

---

---

---

---

---

---

---
