BAZAR ASUS MB Sc LGA1200 PRO B460M-C/CSM, Intel B460, 4xdDR4, VGA, mATX, - Po opravě (bez příslušenství)

Name: BAZAR ASUS MB Sc LGA1200 PRO B460M-C/CSM, Intel B460, 4xdDR4, VGA, mATX, - Po opravě (bez příslušenství)
Brand: Asus
SKU: i8_431447
Price: 1596 CZK
Availability: OutOfStock

BAZAR

Výrobce:Asus

Kód produktu:i8_431447

Part number:90MB13S0-M0EAYC_BAZAR

EAN:431447

Záruka:3 Měsíc(ů)

Dostupnost:

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

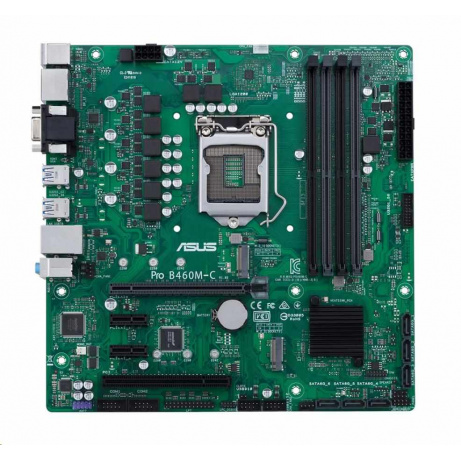

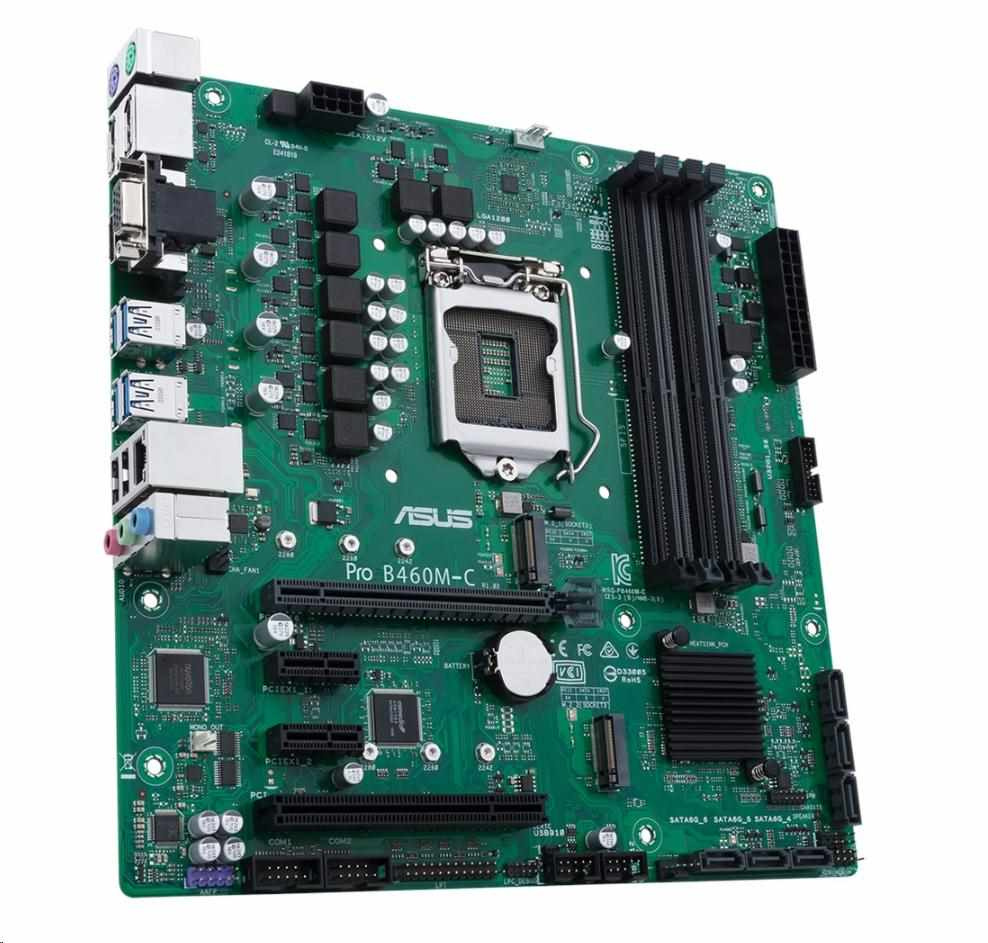

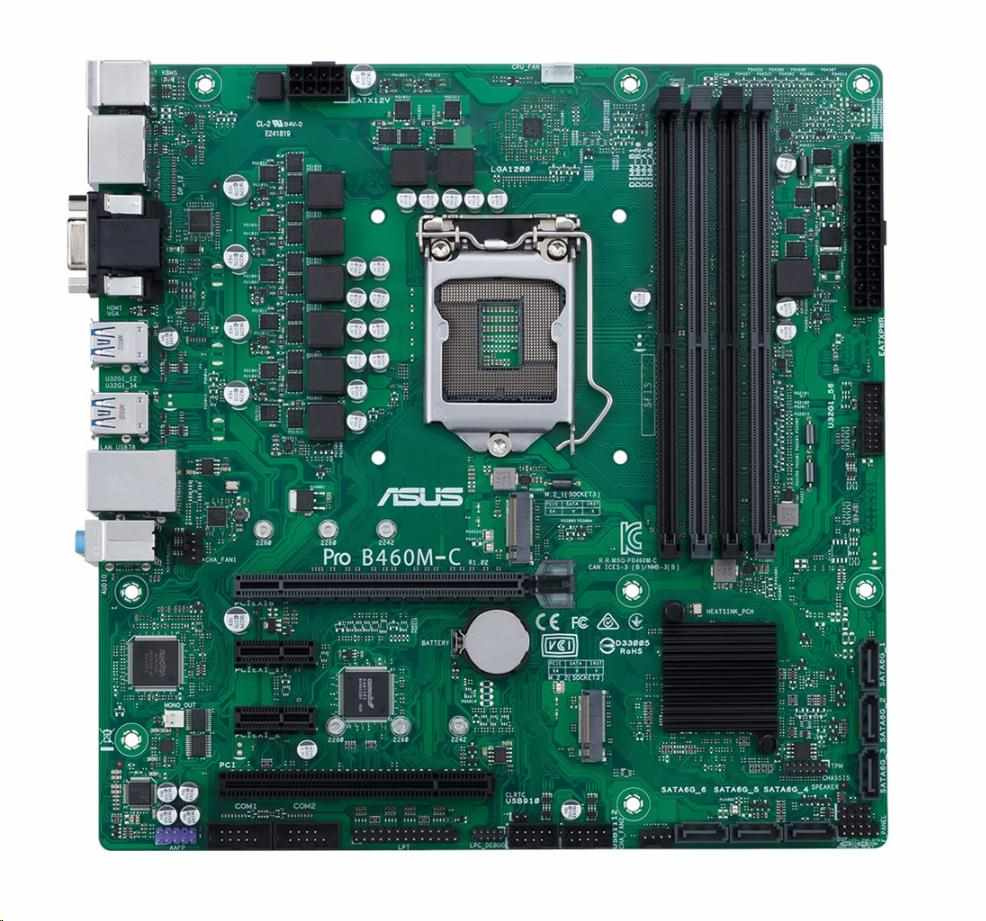

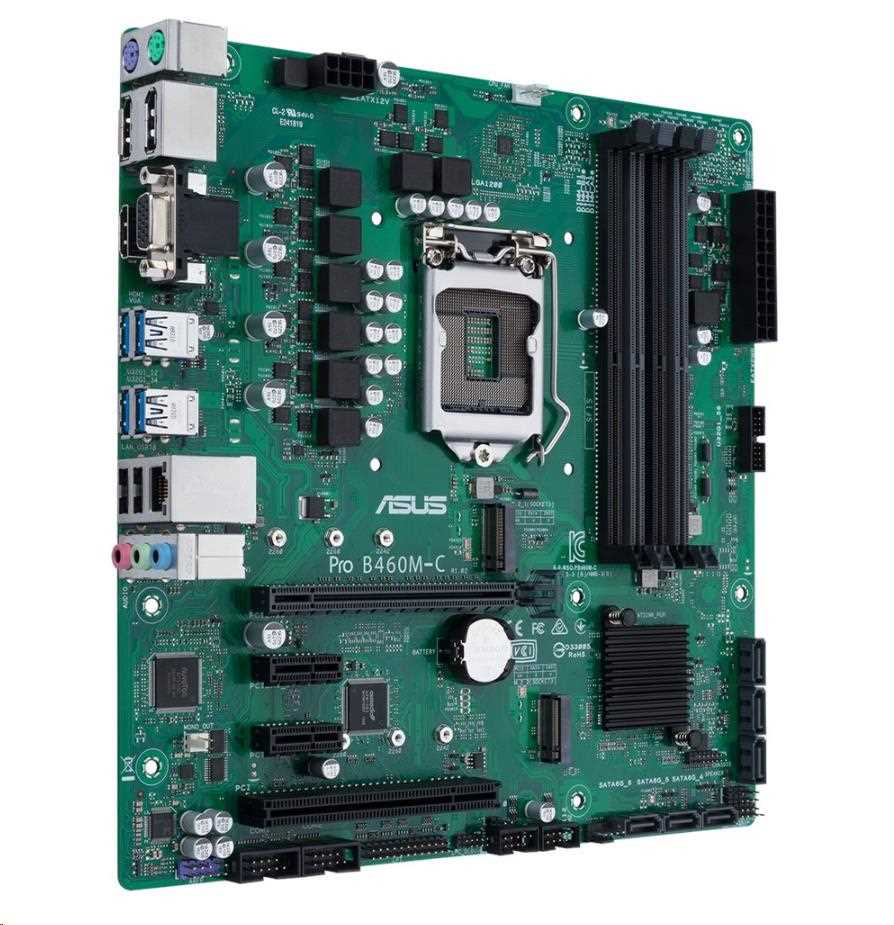

Pro B460M-C/CSM

Micro-ATX B460 business motherboard with enhanced security, reliability and manageability

ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
Dedicated LPC header and debug card with LCD display for faster troubleshooting
Event log for capturing and managing detailed system information
Innovative moisture-resistant coating to protect the motherboard from harsh environments
Commercial BIOS kit to make customization faster and more efficient
ASUS Control Center Express(ACCE) to make IT endpoint management easier

CSM/software pro remote management + pick up & return servis

TECHNICAL SPECIFICATIONS

CPU	Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors * Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B460
Memory	4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	Integrated Graphics Processor 2 x DisplayPort 1.4 ** 1 x D-Sub 1 x HDMI 1.4b Graphics specifications may vary between CPU types. *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Expansion Slots	16-Lane CPU- 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel® B460 Chipset 2 x PCIe 3.0/2.0 x1 1 x PCI
Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® B460 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)2 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready
LAN	Intel® I219V, 1 x Gigabit LAN Controller(s) ASUS LANGuard
Audio	Realtek ALC887 7.1-Channel High Definition Audio CODEC *3 - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
USB Ports	Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
Special Features	Bespoke Motherboard Design & Business Focused Features: - Overcurrent Protection: Short circuit prevention, protects your system - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen - ASUS Event Log: Record activities of system and provides information in BIOS - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment Easy Assembly Design: - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage

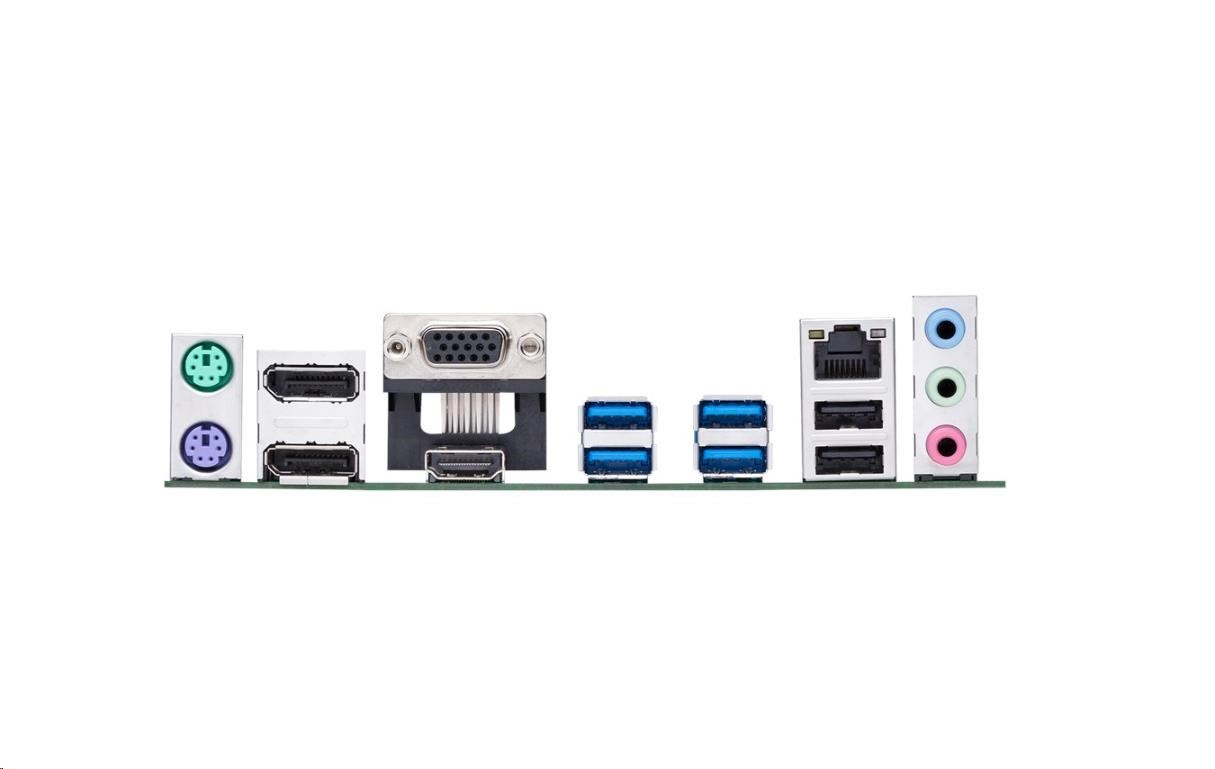

Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 2 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s)
Internal I/O Ports	1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header (with Amp IC) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 1 x SPI TPM header 1 x LPT header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x LPC Debug header

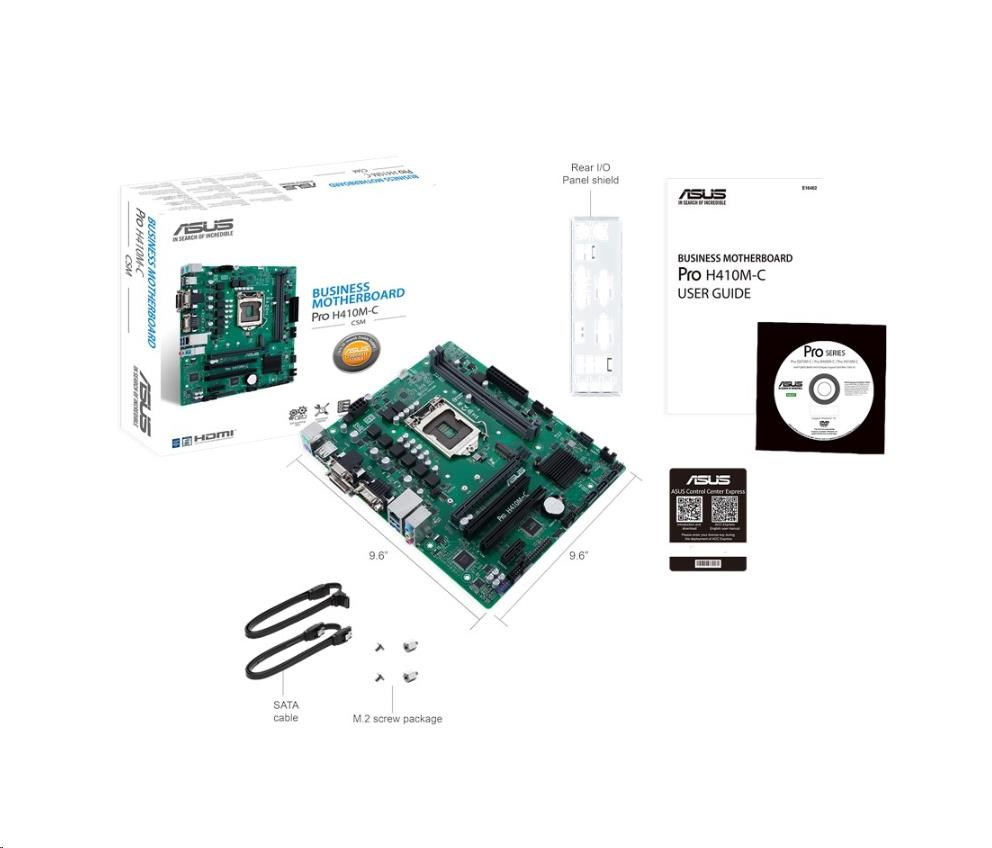

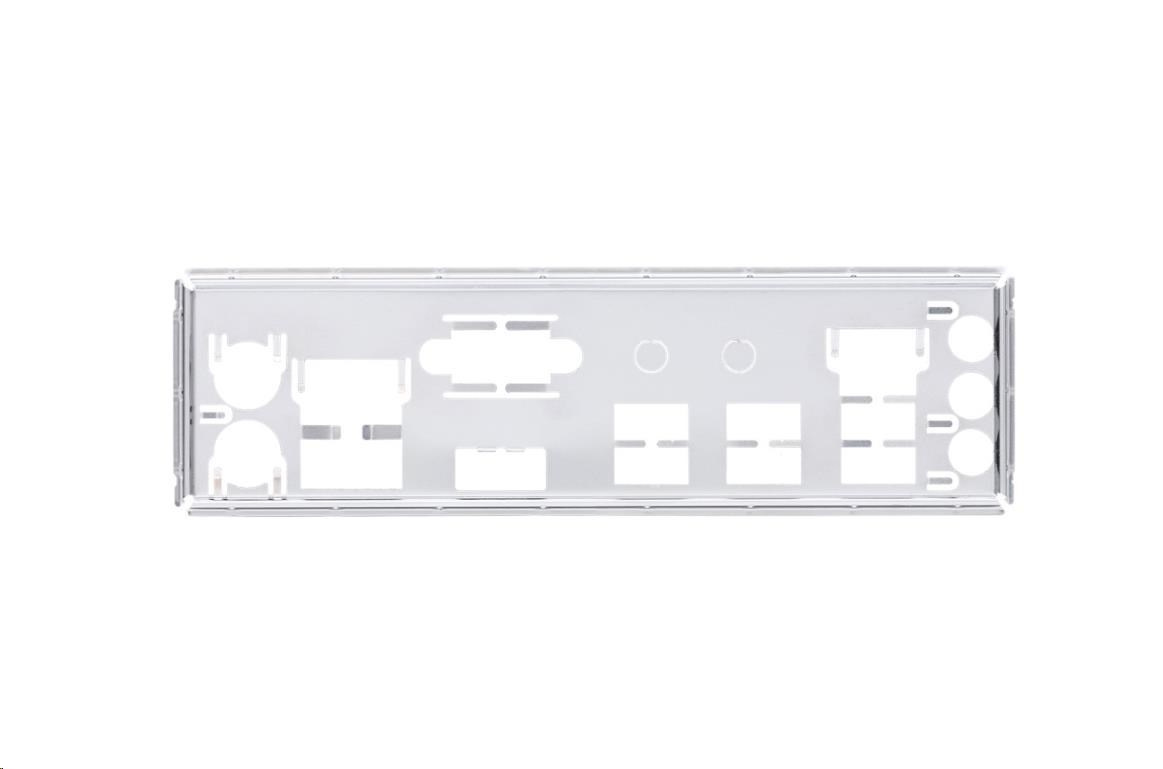

Accessories	User's manual 1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD
BIOS	128Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows® 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Note	1 When a device in SATA mode is installed on the M.2_1 socket, SATA6G_1 port cannot be used. 2 Only the M.2_2 supports IRST. *3 A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Socket (patice):Socket 1200

Formát základní desky:micro ATX

Integrovaná grafická karta:Ano (CPU)

Chipset:Intel

Technologie paměti RAM:DDR4

PCI Express x16:1

Integrovaná LAN karta:1

Podpora RAID:1

Podpora RAID:5

Podpora RAID:10
