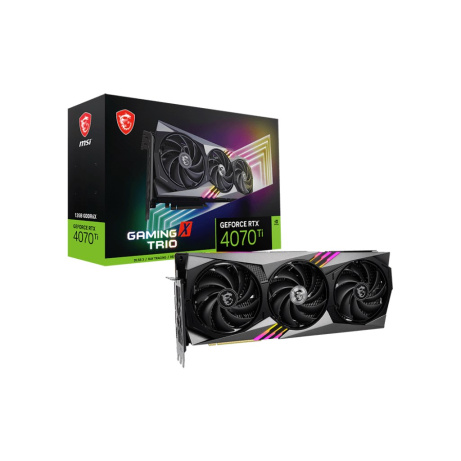

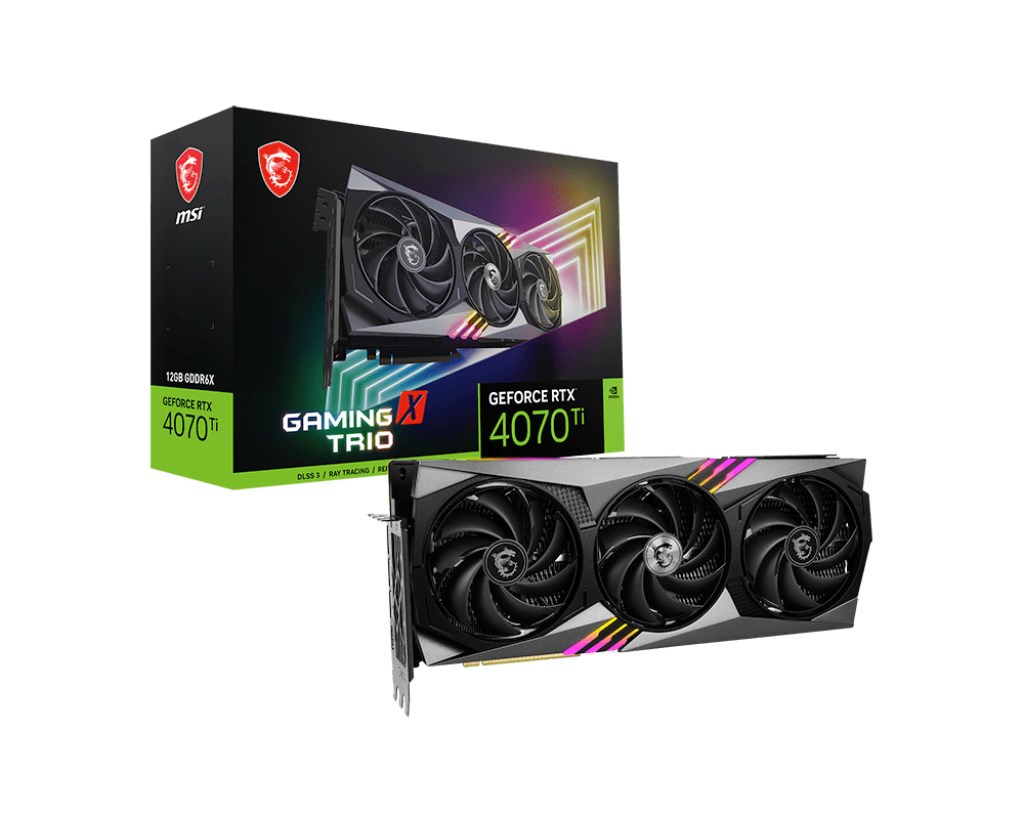

GeForce RTX™ 4070 Ti GAMING X TRIO 12G

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

• 2745 MHz (GAMING & SILENT Mode) / 21 Gbps
• 12GB GDDR6X

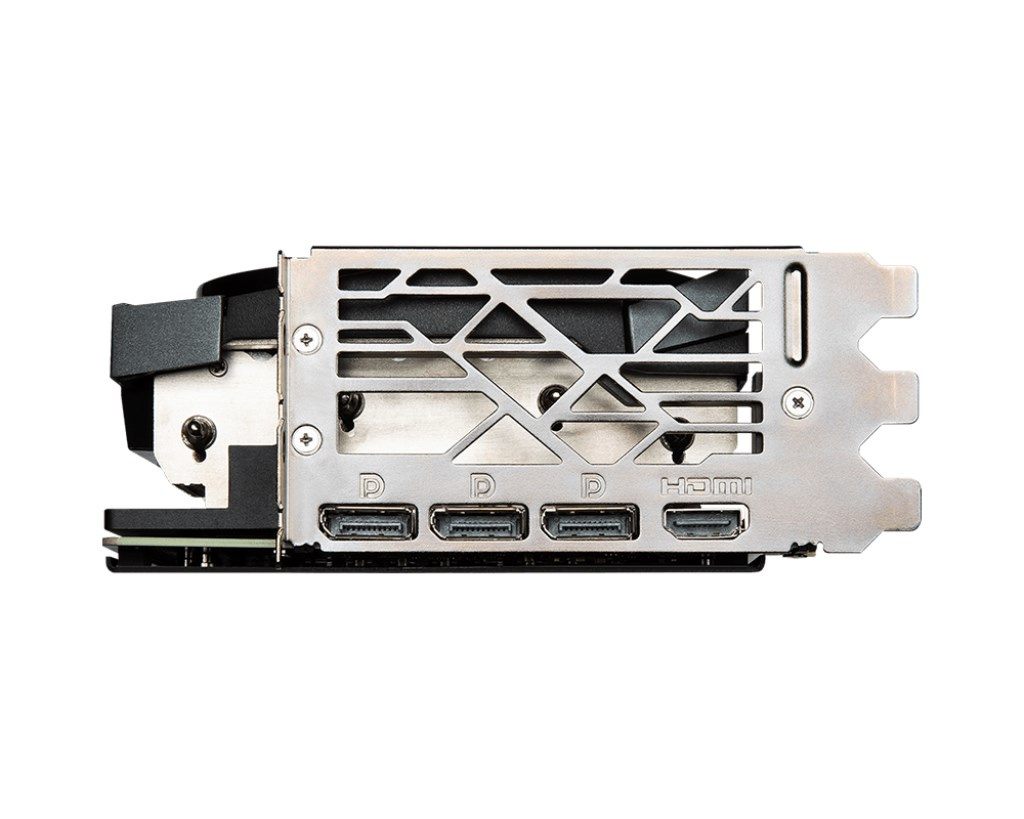

• DisplayPort x 3 (v1.4a)
• HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

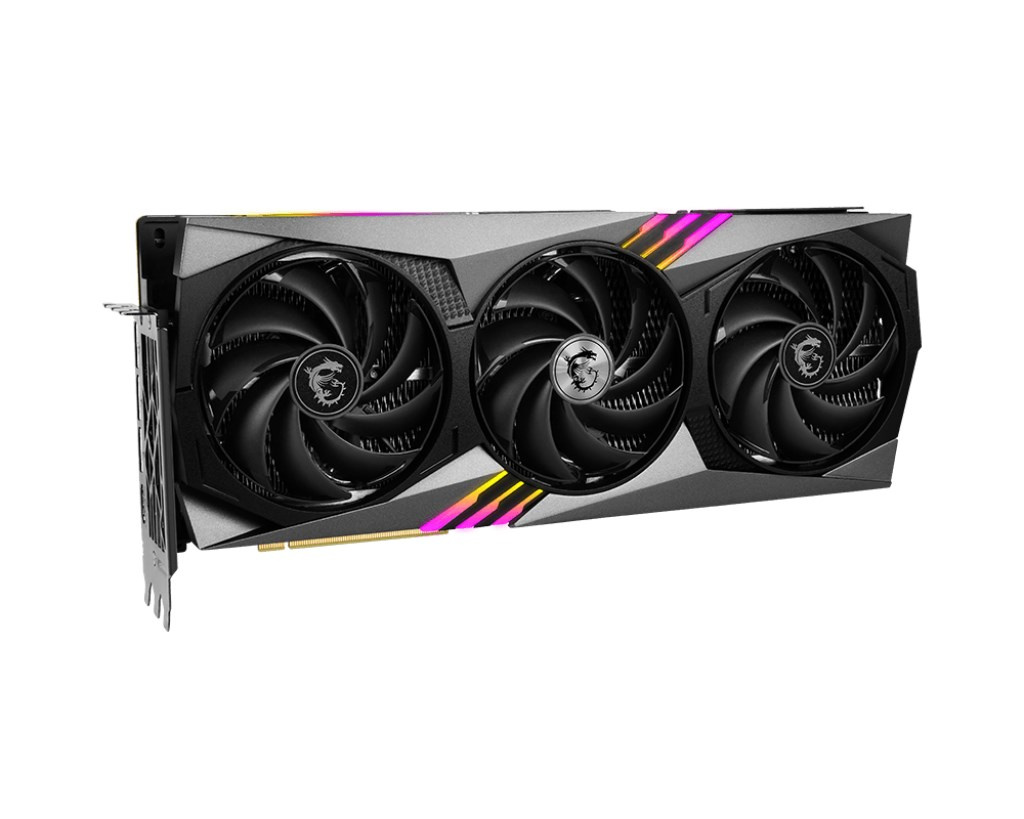

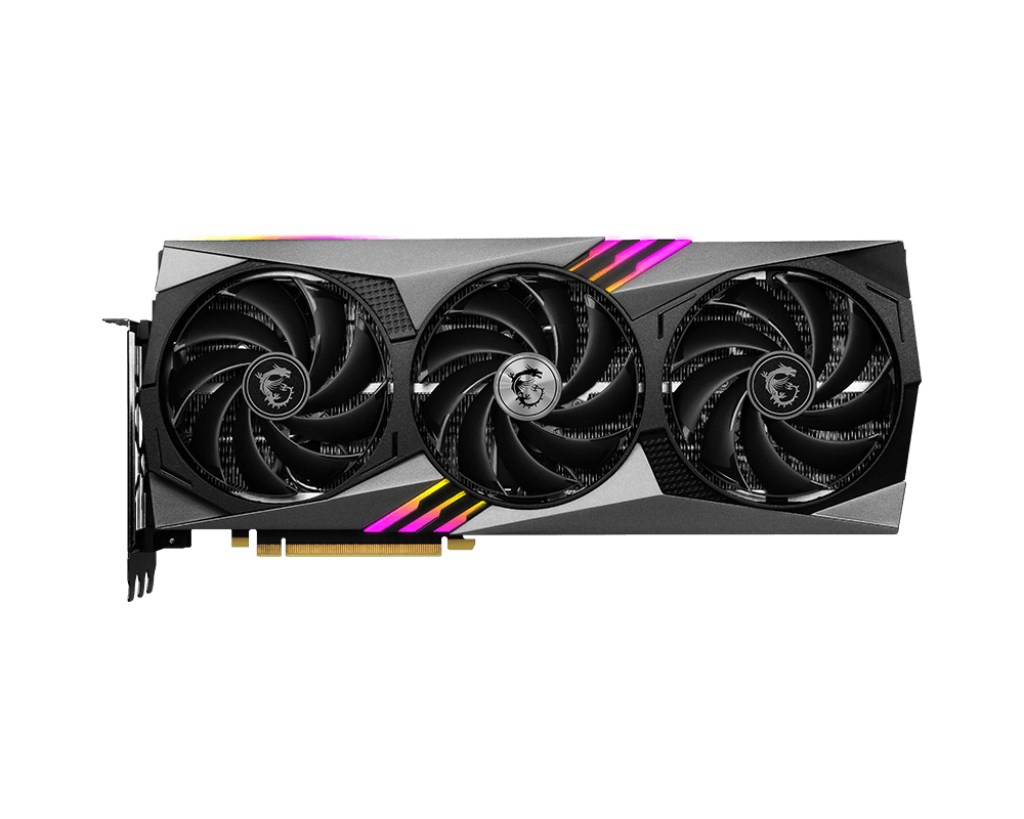

TRI FROZR 3 Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
• Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
• Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Dual BIOS

• Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

Afterburner

• Take full control with the most recognized and widely used graphics card overclocking software in the world.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

MODEL NAME

GeForce RTX™ 4070 Ti GAMING X TRIO 12G

GRAPHICS PROCESSING UNIT

NVIDIA® GeForce RTX™ 4070 Ti

INTERFACE

PCI Express® Gen 4

CORE CLOCKS

Extreme Performance: 2760 MHz (MSI Center)
Boost: 2745 MHz (GAMING & SILENT Mode)

CUDA® CORES

7680 Units

MEMORY SPEED

21 Gbps

MEMORY

12GB GDDR6X

MEMORY BUS

192-bit

OUTPUT

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

HDCP SUPPORT

Y

POWER CONSUMPTION

285 W

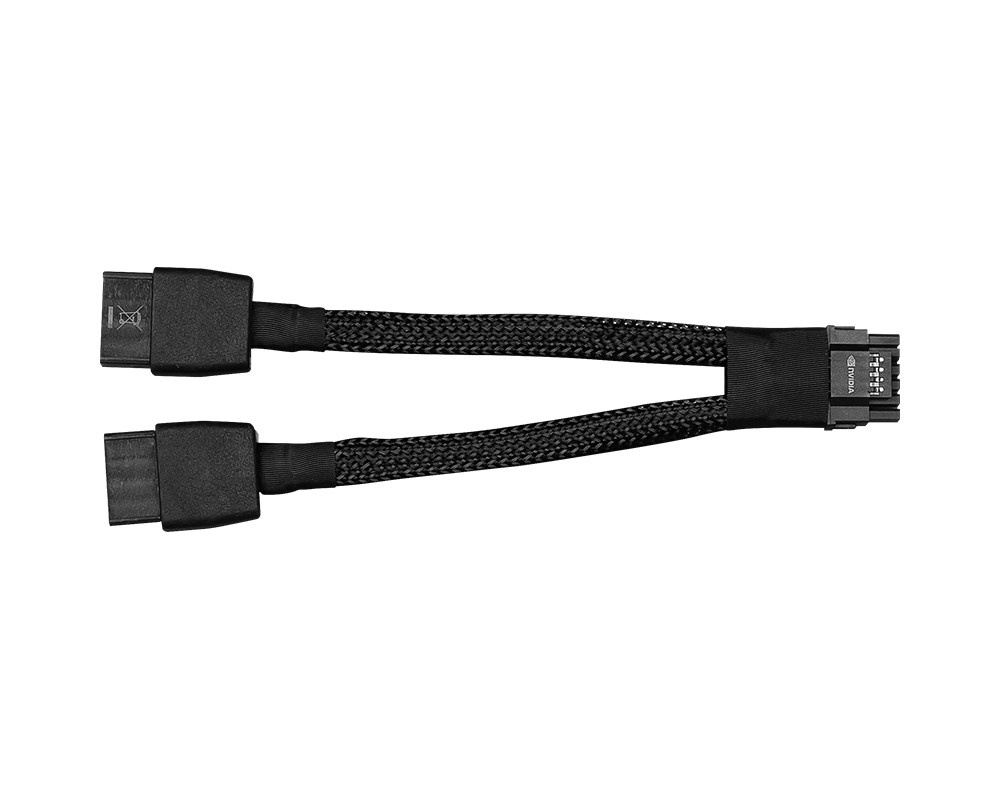

POWER CONNECTORS

16-pin x 1

RECOMMENDED PSU

700 W

CARD DIMENSION (MM)

337 x 140 x 62 mm

WEIGHT (CARD / PACKAGE)

1613 g / 2522 g

DIRECTX VERSION SUPPORT

12 Ultimate

OPENGL VERSION SUPPORT

4.6

MAXIMUM DISPLAYS

4

G-SYNC® TECHNOLOGY

Y

DIGITAL MAXIMUM RESOLUTION

7680 x 4320
