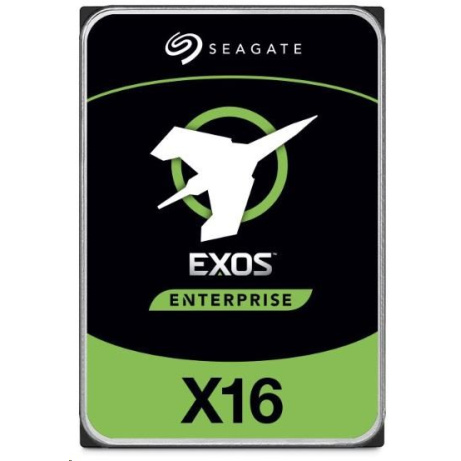

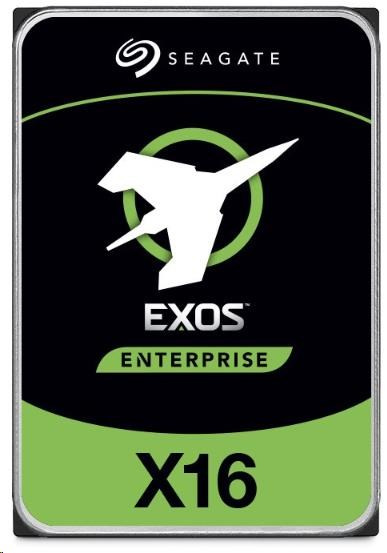

BAZAR - SEAGATE HDD EXOS X16 3,5" - 16TB, SATAIII, ST16000NM001G 512e, recertified product
Scalable. Responsive. Innovative. Exos X16
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos® X16 enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
- Hyperscale applications/cloud data centres
- Massive scale-out data centres
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore — D2D, virtual tape
- Centralised surveillance
TECHNICAL SPECIFICATIONS
| Specifications | SATA 6 Gb/s |
| Capacity | 16TB |
| ™ 1 Standard Model FastFormat (512e/4Kn) | ST16000NM001G |
1,2 SED Model FastFormat (512e/4Kn) | ST16000NM003G |
1,2 SED-FIPS FastFormat (512e/4Kn) | — |
| Helium Sealed-Drive Design | Yes |
| Protection Information (T10 DIF) | — |
| SuperParity | Yes |
| Low Halogen | Yes |
™ PowerChoice Idle Power Technology | Yes |
™ PowerBalance Power/Performance Technology | Yes |
| 3 Hot-Plug Support | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| RSA 2048 Firmware Verification (SD&D) | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Non-recoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year (24×7) | 8,760 |
| 512e Sector Size (Bytes per Sector) | 512 |
| 4Kn Sector Size (Bytes per Sector) | 4,096 |
| Limited Warranty (years) | 5 |
| Spindle Speed (RPM) | 7,200 RPM |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 261, 249 |
| Random Read/Write 4K QD16 WCD (IOPS) | 170/440 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec2) | 12.5 |
| Idle A (W) Average | 5 W |
| Max Operating, Random Read/Write 4K/16Q (W) | 10.0, 6.3 |
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Non-operating: 2 to 500 Hz (Grms) | 2.27 |
| Shock, Operating 2 ms (Read/Write) (Gs) | 50 |
| Shock, Non-operating 2 ms (GS) | 200 |
| 4 Height (mm/in, max) | 26.11 mm/1.028 in |
| 4 Width (mm/in, max) | 101.85 mm/4.01 in |
| 4 Depth (mm/in, max) | 147 mm/5.787 in |
| Weight (lb/g) | 670 g/1.477 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet / Cartons per Layer | 40/8 |
1 FastFormat models ship in 512e format state. When switching from 512e to 4Kn by executing the FastFormat routine, all data on the drive will be deleted. Note that data must be aligned to 4K sectors to see improved performance in 4Kn fomat.
2 Self-Encrypting Drives (SED) and FIPS 140-2 Validated drives available through franchised authorised distributors. May require TCG-compliant host or controller support.
3 Supports Hotplug operation per Serial ATA Revision 3.2 specification
4 These base deck dimensions conform to the Small Form Factor Standard (SFF-8301) found at www.sffcommittee.org. For connector-related dimensions, see SFF-8323.
