Fortron zdroj FSP300-50UCB 80PLUS BRONZE, 1U, 300W

Name: Fortron zdroj FSP300-50UCB 80PLUS BRONZE, 1U, 300W
Brand: Fortron
SKU: i8_368574
Price: 2138 CZK
Availability: OutOfStock

Výrobce:Fortron

Kód produktu:i8_368574

Part number:9PA300H701

EAN:4713224523588

Záruka:24 Měsíc(ů)

Dostupnost:

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

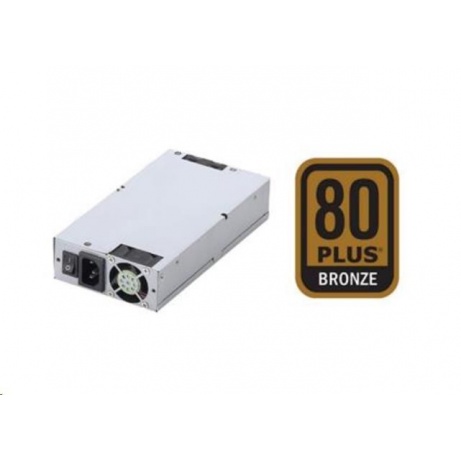

FSP/Fortron 1U FSP300-50UCB 80PLUS BRONZE, bulk, 300W

The FSP300-50UCB is a standard 1U power supply. The power supply offers a total capacity of up to 300 W, which makes it the perfect solution in an industrial environment.

Certified CB 62368-1 & CB 60950-1
Meet 80 Plus Bronze
Design for 5,000 Meter above sea level
High Reliability
Low Ripple & Noise
Over Current Protection
Over Temperature Protection
Over Voltage Protection

TECHNICAL SPECIFICATIONS

Model	FSP300-50UCB
Format	1U
Power supply	300W
PFC	Active PFC
Power supply fan	40mm
Efficiency	80 Plus Bronze
Dimensions (L x W x H)	190 x 100 x 40.5 (mm) 7.49 x 3.94 x 1.6 (inch)
Hold-up time at 100%	115V / 60Hz: >= 10ms
Loading	230V / 50Hz: >= 12ms
Operating altitude	5,000 meters above sea leve
Working temperature	0°C to 50°C
Storage temperature	-20°C to +80°C
Working humidity	85% RH non-condensing
Storage humidity	95% RH non-condensing
MTBF	100,000 hours of continuous operation at 25°C, Max,-output load
Applications	Workstation, Storage System, IPC Controller
Input voltage	90-264Vac
Input frequency	47-63Hz
Input current	115Vac @ 6A, 230Vac @ 3A
Connectors	1x ATX 24 PIN connector 2x SATA 2x MOLEX 1x 4 pin

Formát zdroje:Jiný

Formát zdroje:1U

Konektory:SATA 15-pin

Konektory:Molex

Konektory pro základní desku:ATX 24-pin

Konektory pro základní desku:ATX 4-pin

Efektivita zdroje:80 Plus Bronze

Modulární kabeláž:Ne

Výkon zdroje (W):300
