TP-Link OMADA průmyslový switch IES208G (6xGbE,2xGbE/SFPcombo,DIN,IP40,fanless)

Name: TP-Link OMADA průmyslový switch IES208G (6xGbE,2xGbE/SFPcombo,DIN,IP40,fanless)
Brand: TP-link
SKU: i8_324453
Price: 4161 CZK
Availability: OutOfStock

Novinka

Výrobce:TP-link

Kód produktu:i8_324453

Part number:IES208G

EAN:1210002602099

Záruka:60 Měsíc(ů)

Dostupnost:

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

TP-Link OMADA průmyslový switch IES208G

Omada 8portový gigabitový průmyslový Easy Managed switch

8× gigabitových portů (6× RJ45, 2× RJ45/SFP Combo)
Profesionální průmyslové provedení: -40°C~75°C provozní teplota, 6 kV přepěťová ochrana a 1+1 redundantní napájecí vstup
Bohatá výbava: VLAN, QoS a STP/RSTP
Centralizovaná cloudová správa přes web nebo aplikaci Omada†
Odolný hliníkový kryt s krytím IP40 a konstrukce pro montáž na DIN lištu / na stěnu

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies208g

Technické specifikace

HARDWARE FEATURES

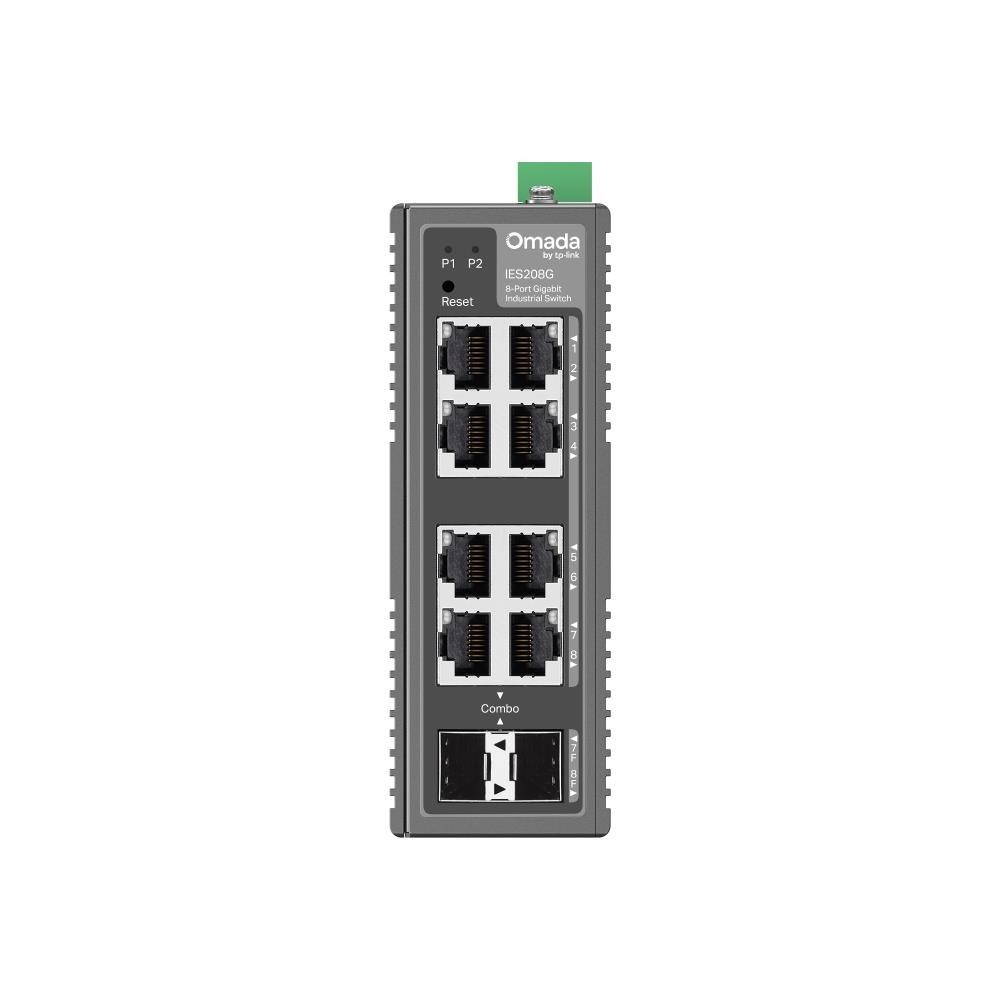

Interface	• 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless

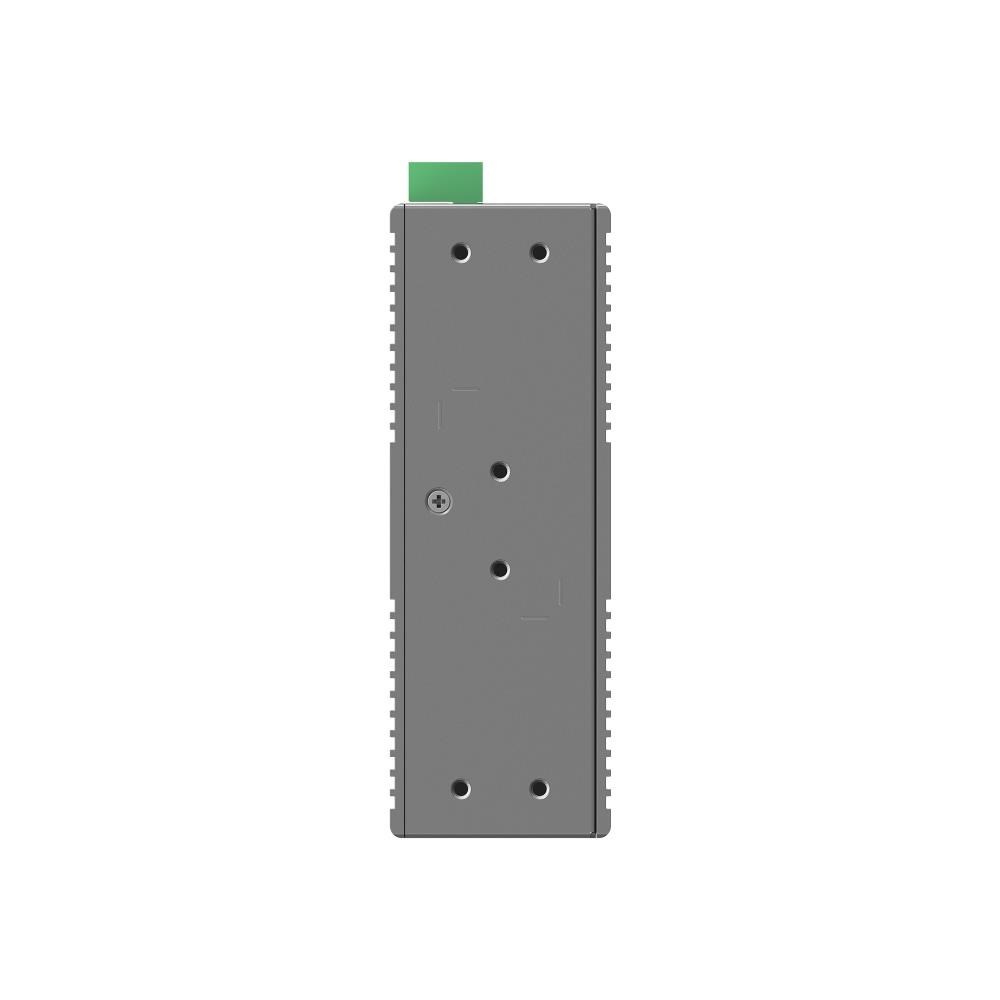

Installation	• DIN-rail mounting • Wall mounting

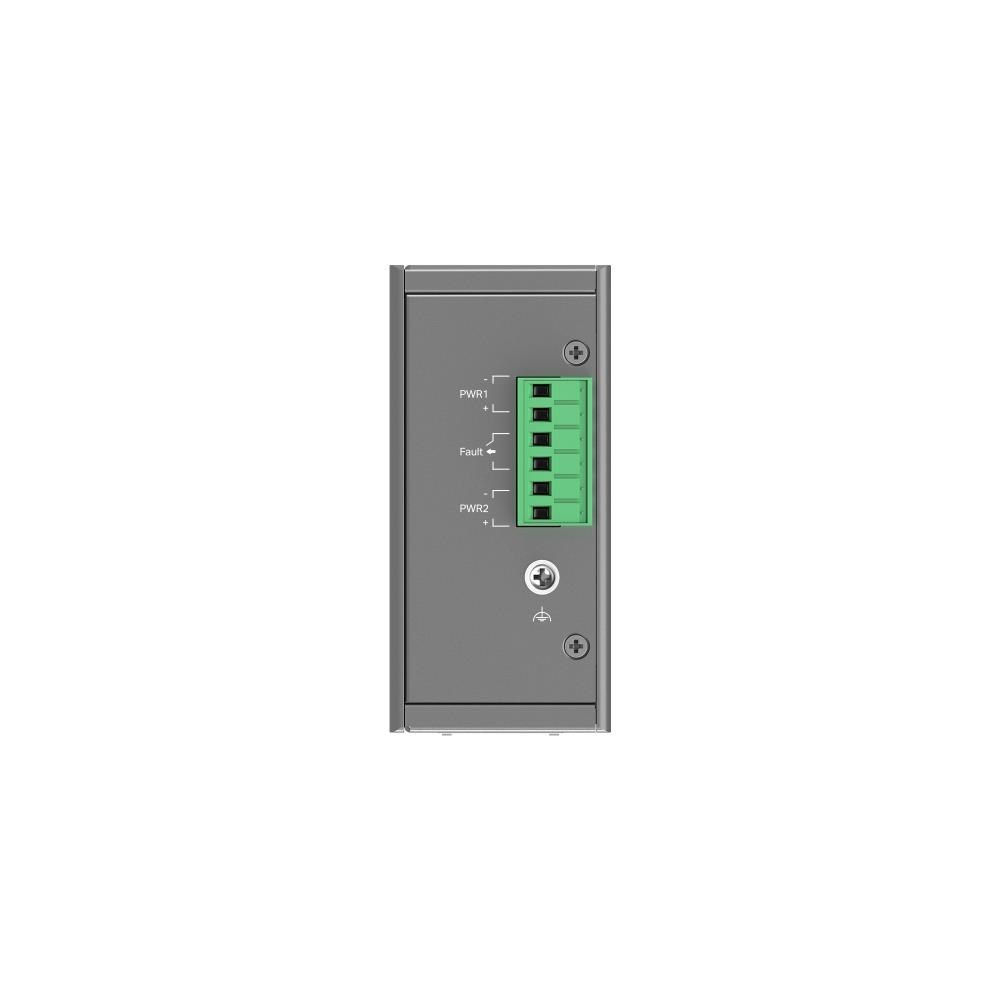

Power Supply	9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H )	5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports
PERFORMANCE
Switching Capacity	16 Gbps
Packet Forwarding Rate	11.9 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Content	• IES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Environment	• Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing

Provedení:DIN Rail

Technologie:Gigabit ethernet + Gigabit optika

Technologie:Gigabit Ethernet 1000Mbps

Management:Web

Funkce:QoS (Quality of service)

Funkce:VLAN (virtual local area network)

Funkce:DHCP snooping

Funkce:L2

Funkce:Web management/Smart switch

Ventilátor:Ne

Počet portů LAN:8

Přenosová rychlost LAN (Mb/s):1000

Maximální počet portů:8

Počet portů Combo:2

Počet SFP portů:2
