TP-Link OMADA switch ES205G (5xGbE,fanless)

Name: TP-Link OMADA switch ES205G (5xGbE,fanless)
Brand: TP-link
SKU: i8_324292
Price: 717 CZK
Availability: InStock

Výrobce:TP-link

Kód produktu:i8_324292

Part number:ES205G

EAN:8885020620917

Záruka:60 Měsíc(ů)

Dostupnost:

Ihned k odeslání: 8 ks

Zeptat se

Sledovat cenu

Porovnat

Popis

Parametry produktu

TP-Link OMADA switch ES205G

Omada 5portový gigabitový Easy Managed Switch

5× 10/100/1000Mb/s RJ45 portů
Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada
Automatická prevence smyček, VLAN a IGMP Snooping
Bezventilátorový design pro tichý provoz
Odolné kovové šasi a možnost instalace na stůl nebo na zeď

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-easy-managed/es205g

Technické specifikace

HARDWARE FEATURES
Interface	• 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity	Fanless

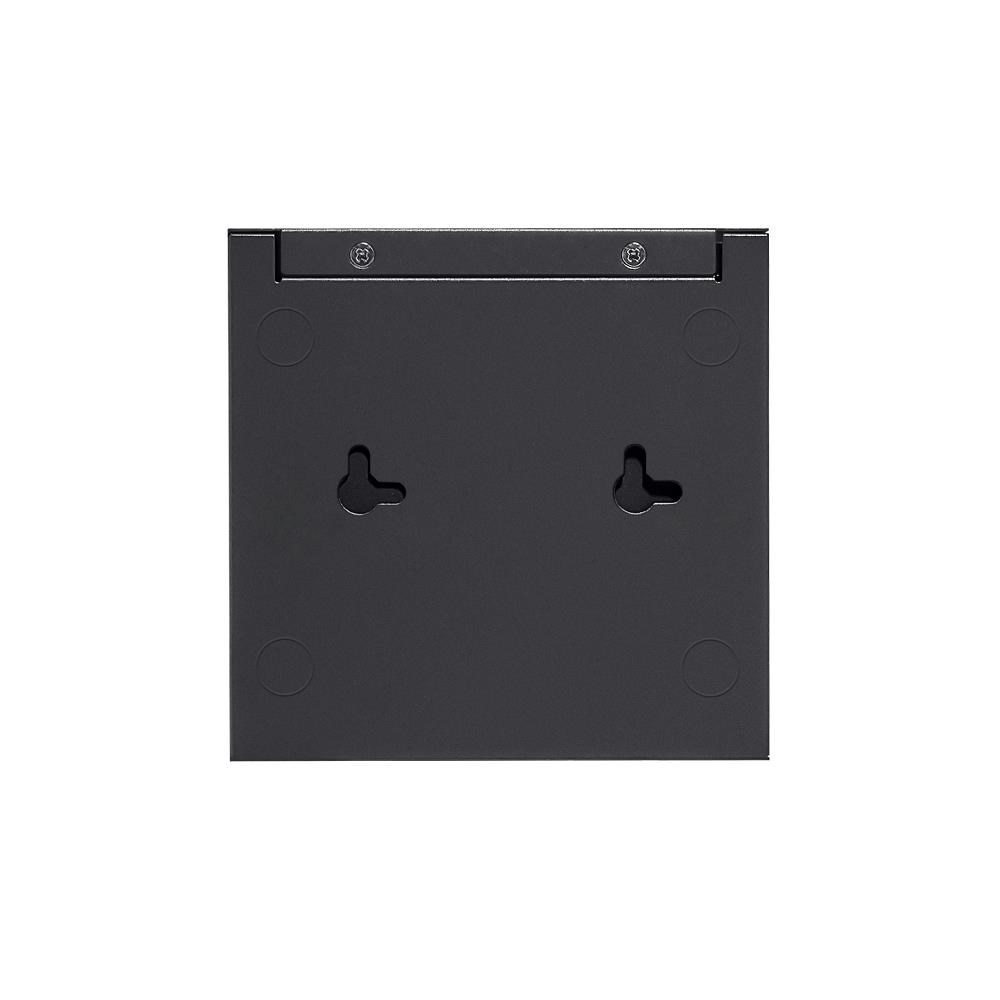

Installation	• Desktop • Wall Mount
Physical Security Lock	?

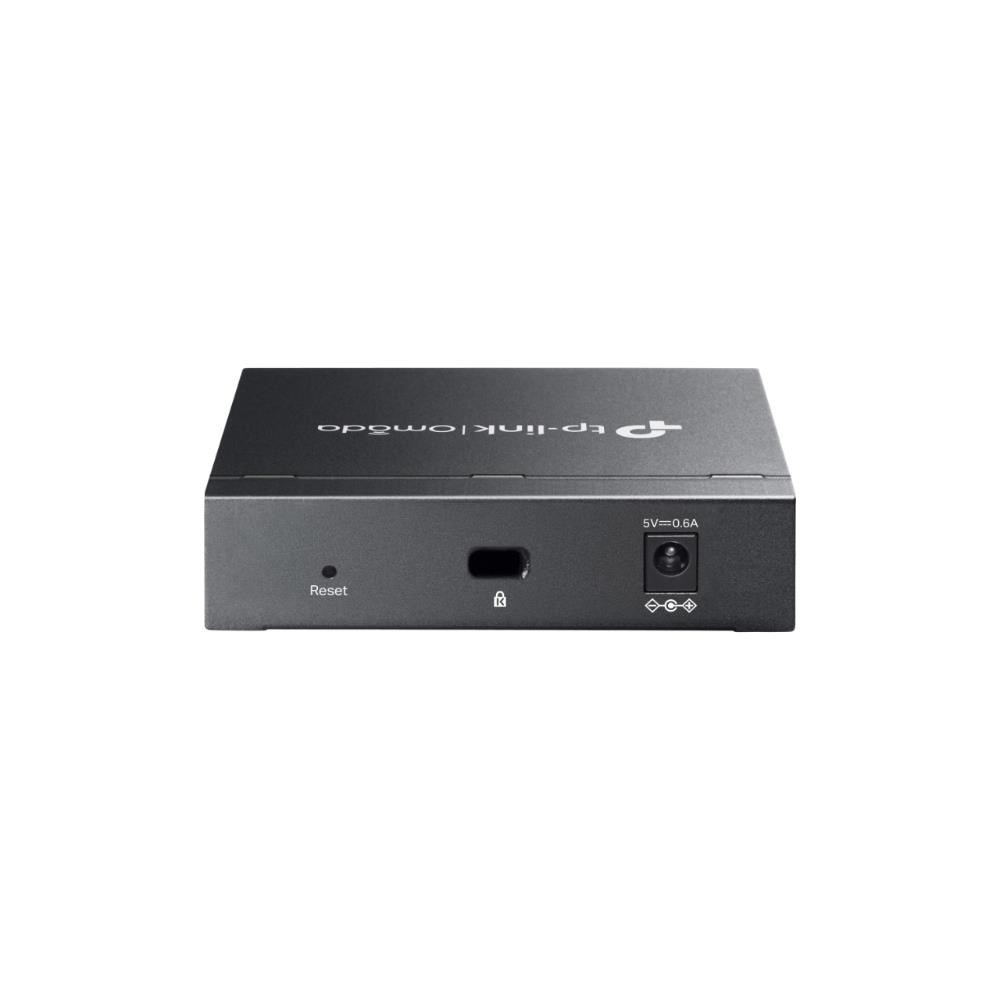

Power Supply	External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	8 K
Packet Buffer Memory	4 Mbits
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
MANAGEMENT
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Contents	• ES205G • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0?~40? (32?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

Provedení:Desktop

Technologie:Gigabit Ethernet 1000Mbps

Management:Web

Funkce:VLAN (virtual local area network)

Funkce:QoS (Quality of service)

Funkce:DHCP snooping

Funkce:L2

Funkce:Web management/Smart switch

Ventilátor:Ne

Počet portů LAN:5

Maximální počet portů:5
