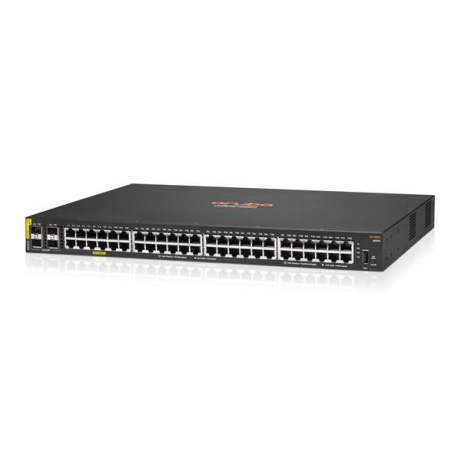

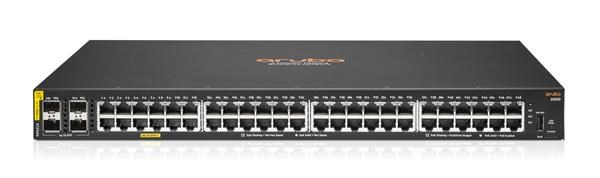

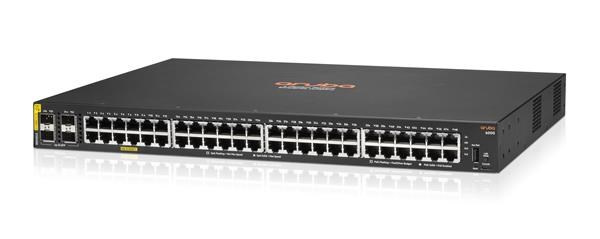

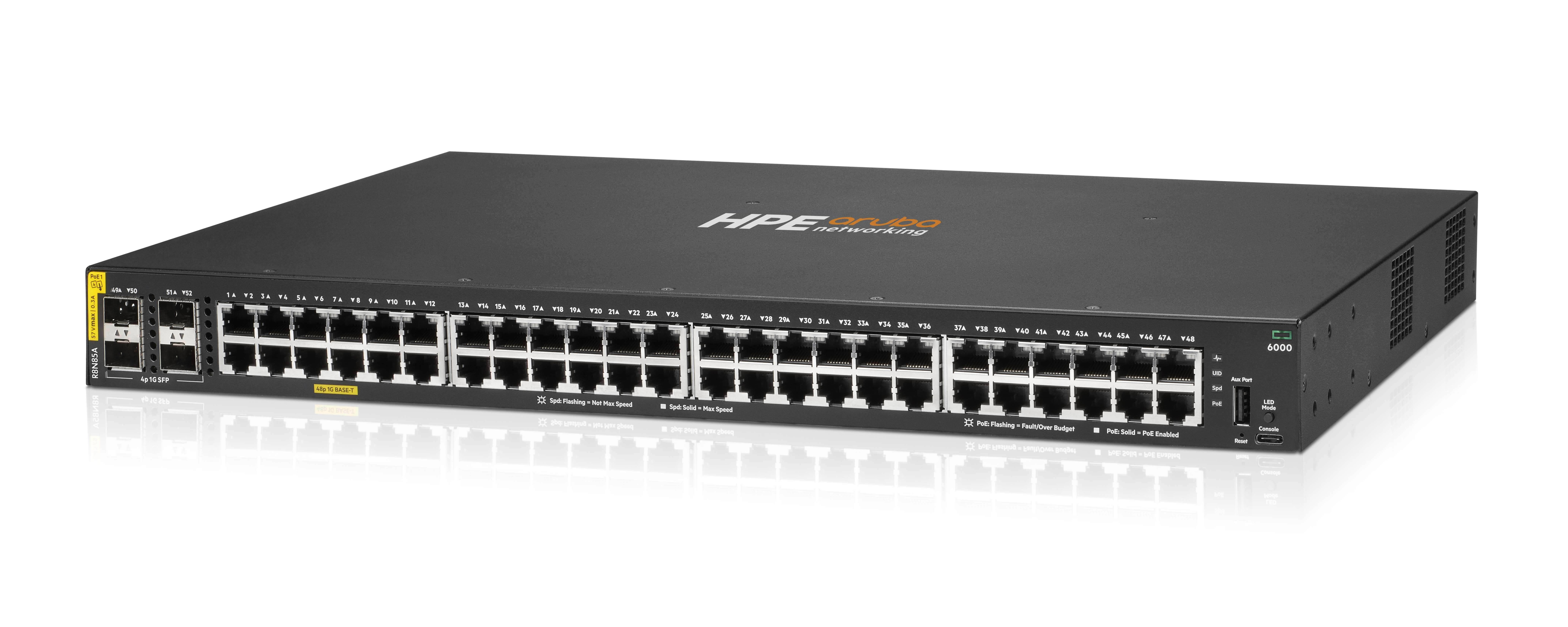

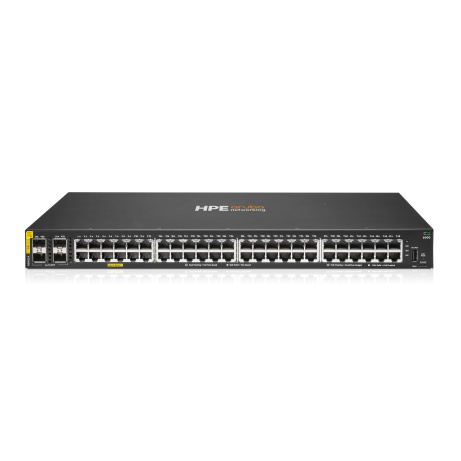

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
Výrobce:Hewlett Packard Enterprise
Kód produktu:i8_1881197
Part number:R8N85A#ABB
EAN:190017559742
Záruka:24 Doživotní
Dostupnost:
skladem k odeslání Zboží je na centrálním skladu dodavatele, připraveno ihned k expedici v případě objednávky do 16:30
k odeslání: 10 ks
Popis
Parametry produktu

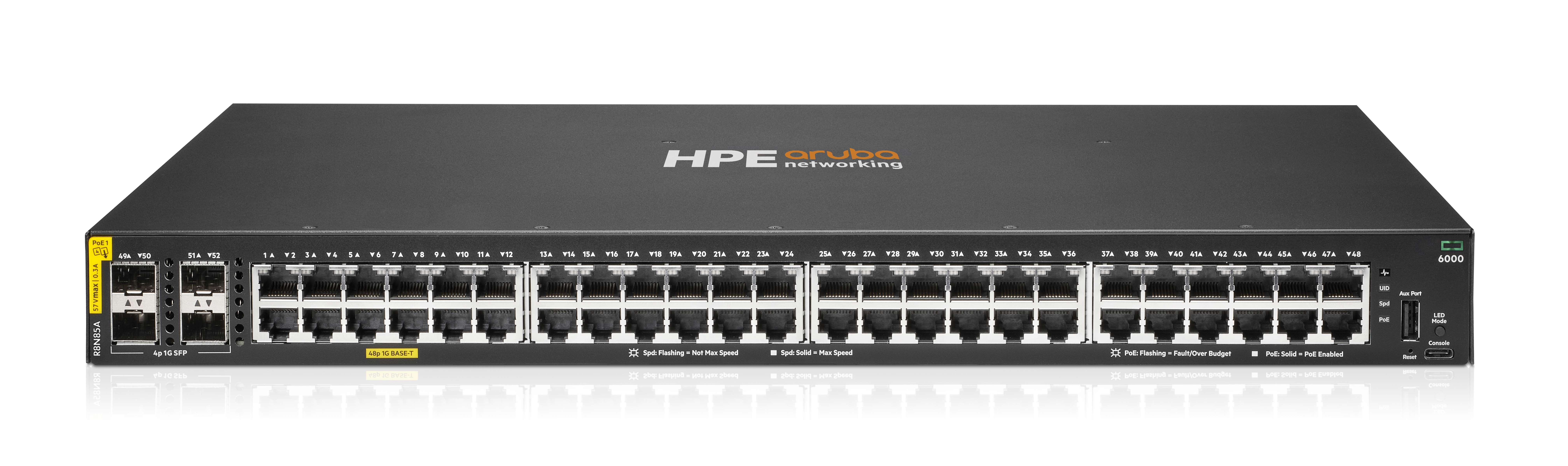

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
HPE Aruba CX 6000 48G PoE Switch - Specifications

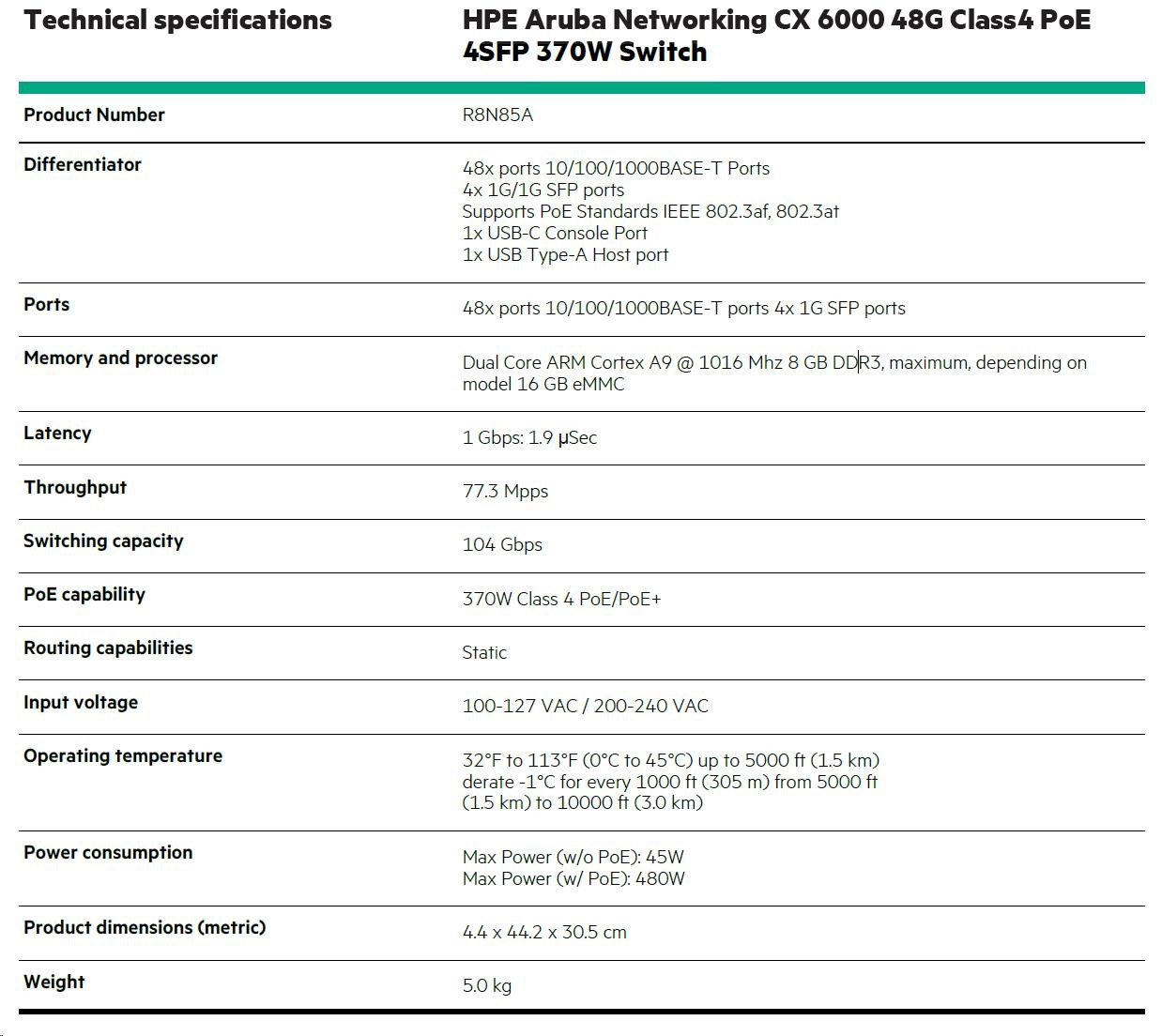

Technical Specifications
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
| Product Number | R8N85A |
|---|---|
| Differentiator | 48x 10/100/1000BASE-T ports 4x 1G/1G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host Port |
| Ports | 48x 10/100/1000BASE-T ports, 4x 1G SFP ports |
| Memory and Processor | Dual Core ARM Cortex A9 @ 1016 MHz 8 GB DDR3 (max) 16 GB eMMC |
| Latency | 1 Gbps: 1.9 µSec |
| Throughput | 77.3 Mpps |
| Switching Capacity | 104 Gbps |
| PoE Capability | 370W Class 4 PoE/PoE+ |
| Routing Capabilities | Static |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) Derate -1°C per 1000 ft (305 m) from 5000 ft to 10000 ft (3.0 km) |
| Power Consumption | Max (w/o PoE): 45W Max (with PoE): 480W |
| Dimensions (metric) | 4.4 x 44.2 x 30.5 cm |
| Weight | 5.0 kg |
HPE Aruba CX 6000 Series Switch Comparison
CX 6000 Series Switch Comparison
| Model | R8N85A 48G PoE | R8N86A 48G | R8N87A 24G PoE |
|---|---|---|---|
| Ports | 48x 10/100/1000BASE-T, 4x 1G SFP | 48x 10/100/1000BASE-T, 4x 1G SFP | 24x 10/100/1000BASE-T, 4x 1G SFP |
| USB Ports | 1x USB-C Console, 1x USB Type-A Host | ||
| PoE | 370W (Class 4) | None | 370W (Class 4) |
| Power Supply | Fixed | ||
| Fans | Fixed | ||
| Dimensions (cm) | 4.39 x 44.2 x 30.48 | 4.39 x 44.2 x 24.74 | 4.39 x 44.2 x 26.82 |
| Weight (kg) | 5.02 | 3.42 | 4.19 |
| CPU | Dual Core ARM Cortex A9 @ 1016 MHz | ||
|---|---|---|---|
| Memory | 4 GB DDR3, 16 GB eMMC | ||
| Packet Buffer | 12.38MB (4.5MB Ingress / 7.875MB Egress) | ||
| Switching Capacity | 104 Gbps | 104 Gbps | 56 Gbps |
| Throughput | 77.3 Mpps | 77.3 Mpps | 41.6 Mpps |
| Latency | 1.9 µs | 1.9 µs | 1.5 µs |
| IPv4/IPv6 Hosts | IPv4: 1,024 IPv6: 512 | ||
| MAC Table | 8,192 | ||
| ACL Entries | IPv4: 256, IPv6: 128, MAC: 256 | ||
| Operating Temp | 0°C to 45°C (up to 1.5 km); Derate -1°C per 1000 ft up to 3 km | ||
|---|---|---|---|
| Humidity (Op/Storage) | 15% to 95% @ 40°C (Op), 15% to 90% @ 65°C (Storage) | ||
| Altitude (Op/Non-Op) | Max Operating: 10,000 ft; Max Non-Operating: 15,000 ft | ||
| Frequency | 50 / 60 Hz | ||
| Voltage | 100–127 VAC / 200–240 VAC | ||
| Current | 4.9 A / 2.4 A | 0.8 A / 0.5 A | 4.6 A / 2.3 A |
| Power (230 VAC) | Idle: 30.6W Max: 45W / 480W (PoE) | Idle: 20.6W Max: 44.2W | Idle: 22.9W Max: 32.7W / 455W (PoE) |
| Safety | IEC / EN / UL / CSA 62368-1 (2014/2018) | ||
|---|---|---|---|
| Emissions | VCCI, CNS, FCC, EN 55032, ICES, AS/NZS CISPR 32 (Class A) | ||
| Laser | IEC / EN 60825-1:2014 Class 1 (Transceivers) | ||
| Immunity | CISPR 35, IEC 61000-4-x Series, EN 55035 | ||
Mounting & Enclosure: Mounts in standard 19" rack, horizontal surface, or wall (kit included).
.Maximální počet portů:48
Provedení:Rack mounted 19"
Technologie:Gigabit ethernet + Gigabit optika
Management:SNMP/RMON
Vlastnosti switche:Funkce POE po portech
PoE budget (W):370
Přenosová rychlost LAN (Mb/s):920
Funkce:QoS (Quality of service)
Funkce:VLAN (virtual local area network)
Funkce:PoE (Power over ethernet)
Funkce:L2
Počet SFP portů:4
Maximální počet portů:48
Počet SFP portů:4
PoE budget (W):370
